DMK 33GX264e

您的当前位置: 首 页 >> 产品中心 >> GigE黑白工业相机

DMK 33GX264e

  • 所属分类:GigE黑白工业相机

  • 型号:DMK33GX264e
  • 点击次数:
  • 发布日期:2020/02/09
  • 在线询价
详细介绍

映美精相机

IMAGINGSOURCE相机

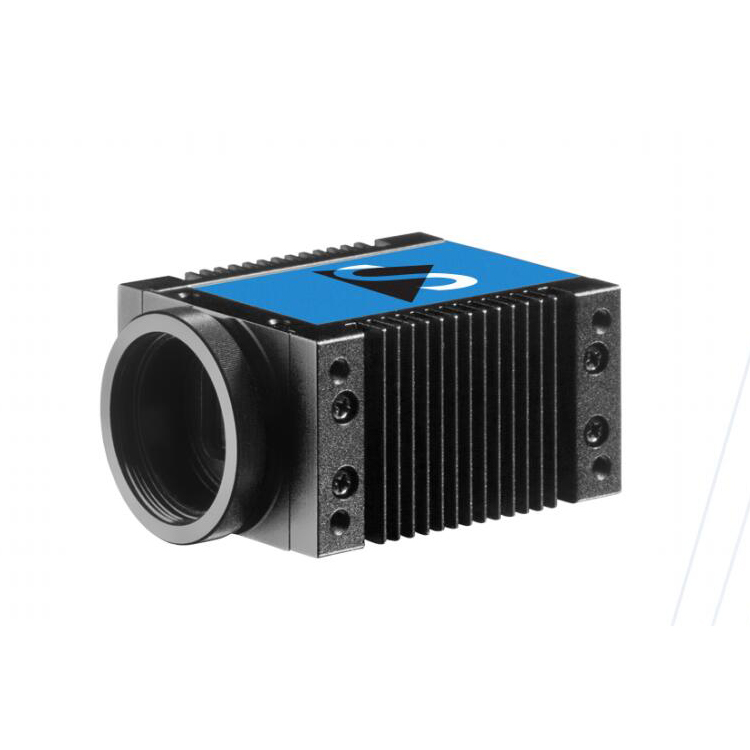

DMK 33GX264e

DMK33GX264e

DMK 33GX264eGigE 黑白工业相机

2/3 inch Sony CMOS Pregius 感光组件 (IMX264LLR)

2,448×2,048 (5 MP), 高达 24 fps

全局快门

外触发及数字 I/O 输入

The Imaging Source制造

一般性能

接口标准

GigE

动态范围

12 bit

分辨率

2,448×2,048 (5 MP)

帧速率

24 fps

视频输出格式

8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome

接口(光学)

红外截止滤光片


感光组件类型

CMOS Pregius

感光组件规格

 Sony IMX264LLR

快门

全局

规格

2/3 inch

像素

水平: 3.45 µm, 垂直: 3.45 µm

镜头接口

(CS 可供选择)

接口(电子)

接口

GigE

供应电压

11 VDC 至 13 VDC or POE: 48 VDC 至 56 VDC

消耗电流

 400 mA @ 12 VDC

自动光圈调节


外触发


数字 I/Os


接口(机械)

尺寸

高度: 29 mm, 宽度: 44 mm, 长度: 57 mm

重量

120 g

调整

快门

20 µs 至 30 s

增益

0 dB 至 48 dB

环境

温度(操作环境)

-5 °C 至 45 °C

温度 (存放环境)

-20 °C 至 60 °C

湿度(操作环境)

20 % 至 80 % 不凝结

湿度(存放环境)

20 % 至 95 % 不凝结

DMK 23G618 CCD,120帧,640x480,软、硬触发及I/O,POE

DMK 23G445 CCD,30帧,1280x960,软、硬触发及I/O,POE

DMK 23G274 CCD,20帧,1600x1200,软、硬触发及I/O,POE

DMK 23GV024      "CMOS,100帧,752x480,软、硬触发及I/O,POE,可裁剪提高帧率,如640x480@115FPS"

DMK 23GP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,POE,可BINNING和裁剪提高帧率"

DMK 23GM021      CMOS,60帧,1280x960,软、硬触发及I/O,POE

DFK 23G618 CCD,120帧,640x480,软、硬触发及I/O,POE

DFK 23G445 CCD,30帧,1280x960,软、硬触发及I/O,POE

DFK 23G274 CCD,20帧,1600x1200,软、硬触发及I/O,POE

DFK 23GV024      "CMOS,100帧,752x480,软、硬触发及I/O,POE,可裁剪提高帧率,如640x480@115FPS"

DFK 23GP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,POE,BINNING和裁剪提高帧率"

DFK 23GM021      CMOS,60帧,1280x960,软、硬触发及I/O,POE

DMK 23F618 CCD,120帧,640x480,软、硬触发及I/O

DMK 23F445 CCD,30帧,1280x960,软、硬触发及I/O

DMK 23F274 CCD,20帧,1600x1200,软、硬触发及I/O

DMK 23FV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DMK 23FP031      "CMOS,11帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DMK 23FM021      CMOS,60帧,1280x960,软、硬触发及I/O

DFK 23F618 CCD,120帧,640x480,软、硬触发及I/O

DFK 23F445 CCD,30帧,1280x960,软、硬触发及I/O

DFK 23F274 CCD,20帧,1600x1200,软、硬触发及I/O

DFK 23FV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DFK 23FP031      "CMOS,11帧,2592x1944,软、硬触发及I/O,BINNING和裁剪提高帧率"

DFK 23FM021      CMOS,60帧,1280x960,软、硬触发及I/O

DMK 23U618 CCD,120帧,640x480,软、硬触发及I/O

DMK 23U445 CCD,30帧,1280x960,软、硬触发及I/O

DMK 23U274 CCD,20帧,1600x1200,软、硬触发及I/O

DMK 23UV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DMK 23UP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DMK 23UM021      CMOS,60帧,1280x960,软、硬触发及I/O

DFK 23U618 CCD,120帧,640x480,软、硬触发及I/O

DFK 23U445 CCD,30帧,1280x960,软、硬触发及I/O

DFK 23U274 CCD,20帧,1600x1200,软、硬触发及I/O

DFK 23UV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DFK 23UP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,BINNING和裁剪提高帧率"

DFK 23UM021      CMOS,60帧,1280x960,软、硬触发及I/O

DMK 22AUC03      1/3"/744x480/60fps

DMK 22BUC03      1/3"/744x480/60fps

DMK 72AUC02      1/2.5"/2592x1944/6fps

DMK 72BUC02      1/2.5"/2592x1944/6fps

DMK 42AUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DMK 42BUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DFK 22AUC03      1/3"/744x480/60fps

DFK 22BUC03      1/3"/744x480/60fps

DFK 72AUC02      1/2.5"/2592x1944/7fps

DFK 72BUC02      1/2.5"/2592x1944/7fps

DFK 42AUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DFK 42BUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOU

GigE工业相机

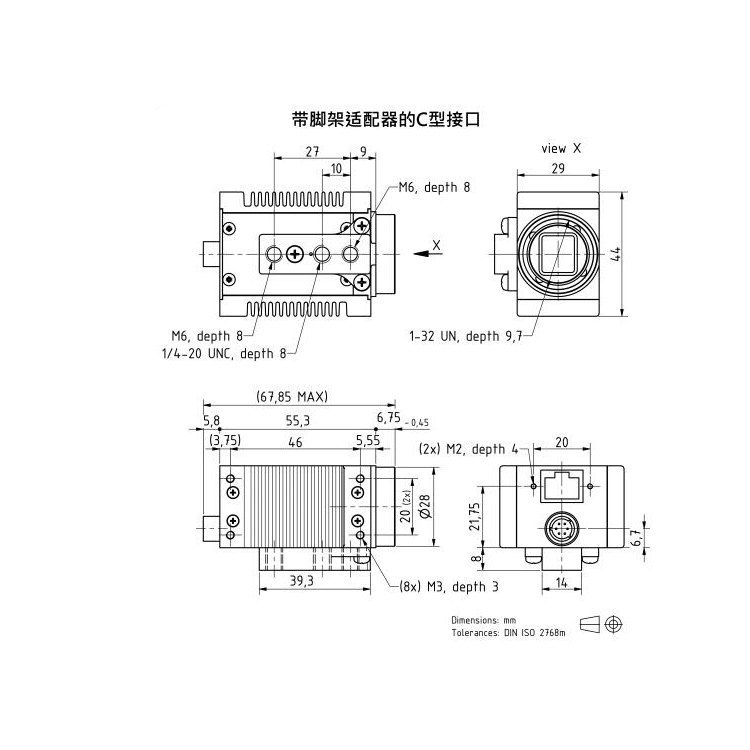

DMK 33GX264e尺寸

DMK33GX264e尺寸
