DFK AFU420-CCS

您的当前位置: 首 页 >> 产品中心 >> USB3.0彩色工业相机

DFK AFU420-CCS

  • 所属分类:USB3.0彩色工业相机

  • 型号:DFK AFU420-CCS彩色
  • 点击次数:
  • 发布日期:2020/02/08
  • 在线询价
详细介绍

映美精相机

DFK AFU420-CCS彩色

USB3.0彩色工业相机

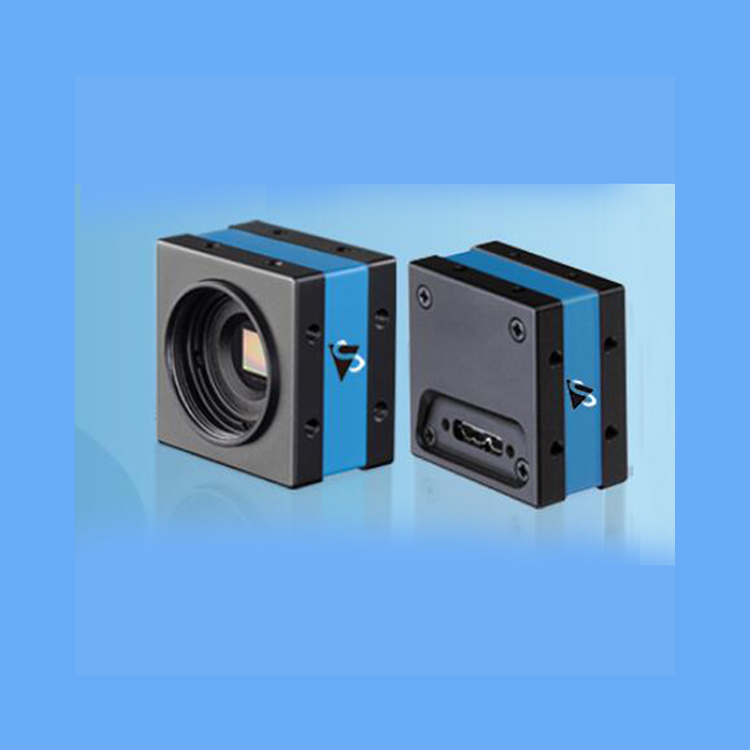

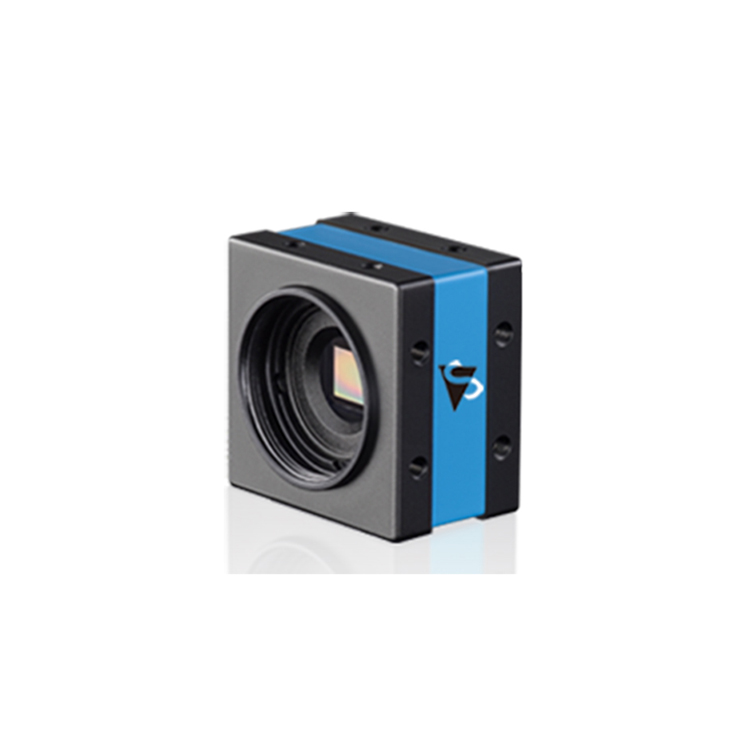

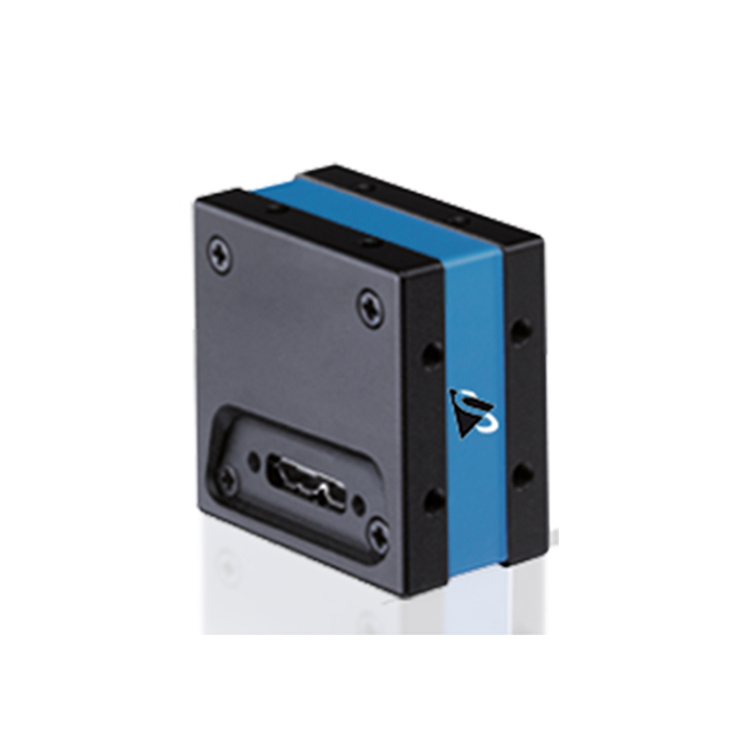

DFK AFU420-CCS USB 3.0 彩色工业相机

2/3 inch CMOS 感光组件

7,716×5,360 (41.4 MP), 高达 110 fps

卷帘快门

The Imaging Source制造

一般性能

动态范围

8/12 bit

视频格式@帧速率

7,716×5,360 (41.4 MP) RGB32 @ 7 fps
5,424×5,360 (29.1 MP) RGB32 @ 10 fps
1,920×1,080 (2.1 MP) RGB32 @ 110 fps
5,424×5,360 (29.1 MP) RGB64 @ 6.7 fps
1,920×1,080 (2.1 MP) RGB64 @ 74 fps

接口(光学)

红外截止滤光片


感光组件类型

CMOS

快门

卷帘

规格

2/3 inch

像素

水平: 1.12 µm, 垂直: 1.12 µm

镜头接口

C/CS

接口(电子)

接口

USB 3.0

供应电压

4.5 VDC 至 5.5 VDC

消耗电流

约 250 mA @ 5 VDC

自动光圈调节


外触发


数字 I/Os


接口(机械)

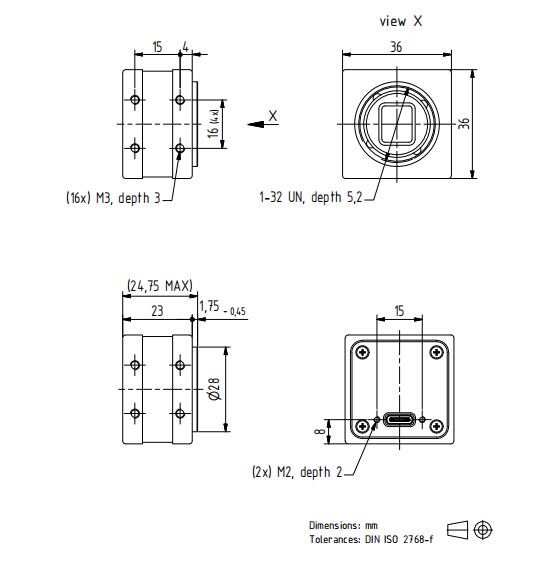

尺寸

高度: 36 mm, 宽度: 36 mm, 长度: 26 mm

重量

70 g

调整

快门

1/1,000,000 s 至 1/2 s

增益

0 dB 至 12 dB

白平衡

-2 dB 至 6 dB

环境

温度(操作环境)

-5 °C 至 45 °C

温度 (存放环境)

-20 °C 至 60 °C

湿度(操作环境)

20 % 至 80 % 不凝结

湿度(存放环境)

20 % 至 95 % 不凝结
