XC-HR70

您的当前位置: 首 页 >> 产品中心 >> 索尼工业相机

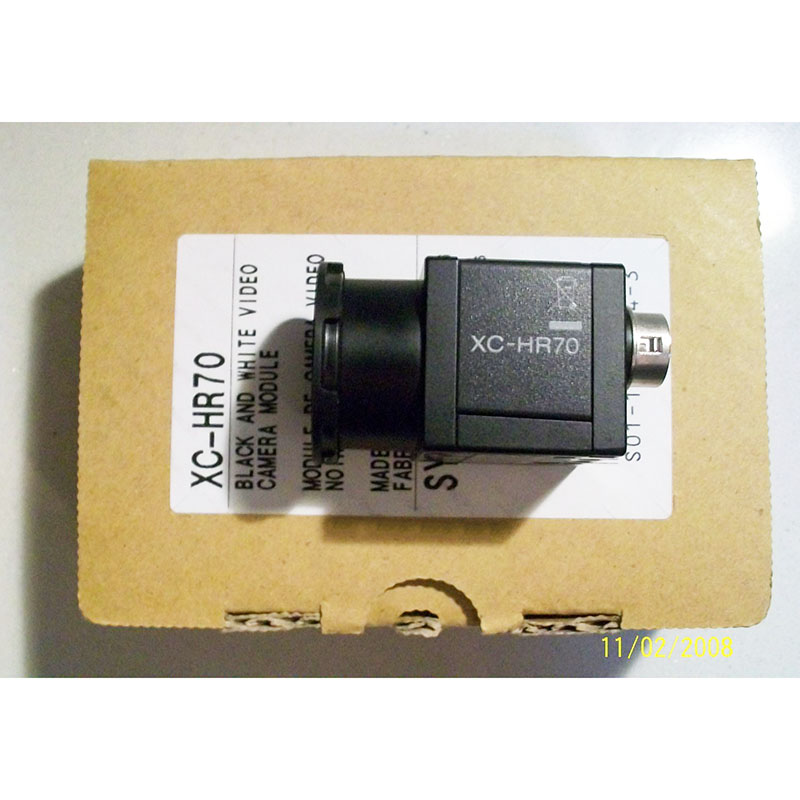

XC-HR70

  • 所属分类:索尼工业相机

  • 型号:XC-HR70工业相机
  • 点击次数:
  • 发布日期:2022/04/04
  • 在线询价
详细介绍

索尼工业相机

索尼工业相机

XC-HR70产品信息

For Demanding Applications That Require High Frame Rates and High Resolution, Choose the Sony XC-HR Series of Progressive Scan Cameras.

SPECIFICATIONS

XC-HR70

Image device

1/3 type IT progressive scan CCD

Effective picture elements

782 (H) x 582 (V)

Image size

XGA size: 1,024 (H) x 768 (V)

CCD vertical drive

23.23 kHz ±1 %

frequency
Lens mount

C-Mount

Flange back

17.526 mm

Sync system

Int/Ext

External sync signal

HD/VD

Scanning System

Normal: 796 lines

Non-Interlace : 1/29.2s

Binning: 398 lines, 1/58.4s

Output signal frequency

29.2 Hz (normal mode),

58.4 Hz (binning mode)

Video output

1.0 Vp-p, sync negative, 75 Ω, unbalanced

Output Connector

12 pin (New EIAJ)

Horizontal Resolution

800 TV lines

Sensitivity

400 lux F5.6 Fix Gain (0 dB)

Min. Illumination

1.0 lux (F1.8, Manual gain Max)

S/N ratio

56 dB

Gain

Fix/Manual

Gamma

OFF fixed

White clip

820 mV ±70 mV(F1.4, FIX GAIN)

Shutter

Normal shutter, Restart/Reset, External trigger shutter

(Mode 1/MODE 2)

Normal shutter speed

OFF to 1/20,000s switchable at rear panel

External trigger shutter speed

1/4 to 1/100,000s

High-rate scanning

R/R mode binning off:
max 120 frames/s
R/R mode binning on:
max 180 frames/s

External trigger
shutter mode (MODE 1)
binning off:
max 120 frames/s
External trigger
shutter mode (MODE 1)
binning on:
max 180 frames/s

Power requirements

DC 12 V (+10.5 to 15 V)

Power Consumption

2.0 W

Dimensions (W x H x D)

29 x 29 x 30 cm (1 3⁄16 x 1 3⁄16 x 1 3⁄16 inches)

Mass

50 g (2 oz)

Operating temperature

-5 to 40 °C (23 to 113 °F)

Storage temperature

-30 to 60 °C (-22 to 140 °F)

Operating humidity

20 to 80 % (no condensation)

Storage humidity

20 to 95 % (no condensation)

Vibration resistance

10 G (20 Hz to 200 Hz)

Shock Resistance

70 G

Regulation

UL 6500, FCC Class A Digital Device, (EN61326/97+A1/98),

AS4251.1+A4252.1

Supplied accessories

Lens mount cap (1), Operating instructions (1)

Optional accessories

Camera cable CCXC-12PxxN, Camera adaptor (power source)

DC-700/CE, Tripod adaptor VCT-331



All of these cameras feature the same compact body enabling them to be easily interchanged to meet your various application requirements and are ideal for space restricted areas.



Both the XC-HR50 and XC-HR70 cameras incorporate a 1/3“ Progressive Scan IT CCD. The XC-HR50 features VGA resolution of 648 x 494 pixels at 60 full fps, and the XC-HR70 provides XGA resolution of 1024 x 768 pixels at 30 full fps.



In addition, the XC-HR camera series has a high-rate scanning function that increases their vertical scanning frequency so that images can be captured at up to 120 - 240 fps depending on the camera model. Combining high-resolution and highspeed image capture capabilities in a compact, robust body, the Sony XC-HR Camera Series are ideal for demanding applications such as semiconductor production and high-speed assembly lines.














· 1/3-type progressive scan CCD

· XGA resolution (1,024 x 768 pixels) image capturing at a speed of 29 full fps.

· High-rate scanning of up to 120 partial fps. (152 effective lines at restart/reset ON, binning OFF)

· Horizontal resolution: 800 TV lines

· Partial scan controlled by VD pulse length

· Minimum illumination: 1.0 lx at F1.8

· High S/N ratio: 56 dB

· Electronic shutter: 1/100 to 1/20,000 sec.

· Vertical Binning Function

· By combining the image data of every two lines vertically, these cameras can increase the frame rate, which minimizes image processing time.

· External Trigger Shutter

· Allows accurate image capture of fast-moving objects through shutter speeds of 1/4 to 1/100,000 sec.

· High Shock and Vibration Tolerance

· RoHS Compliance

· Compact, Lightweight Body

· C-mount
