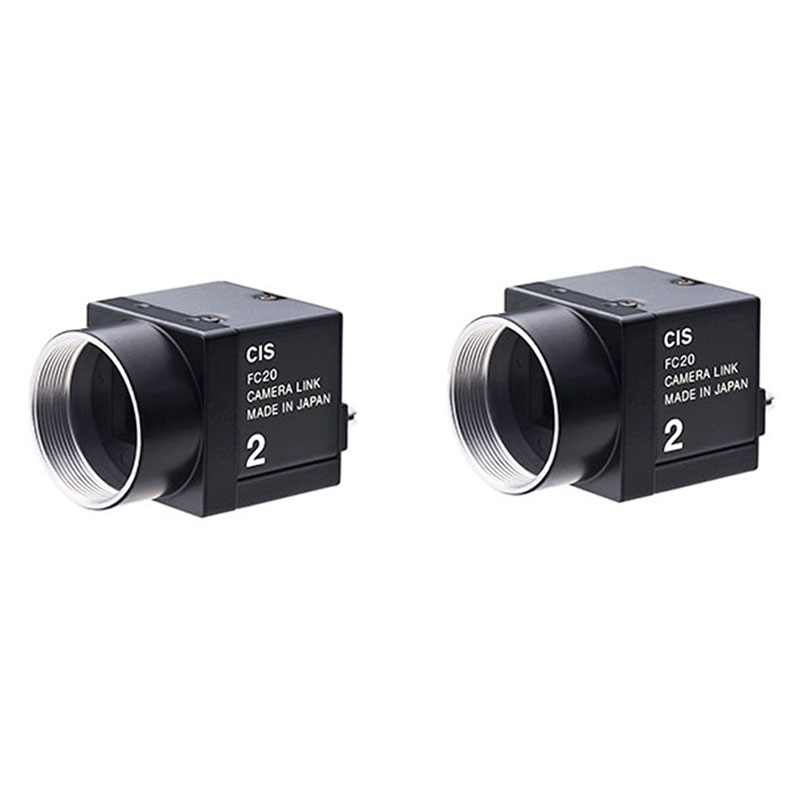

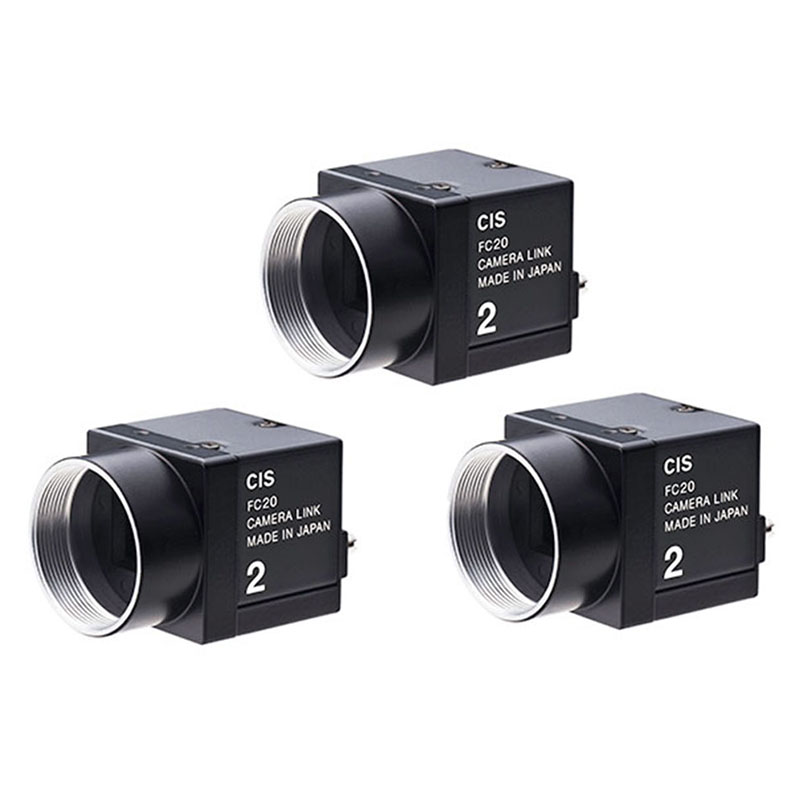

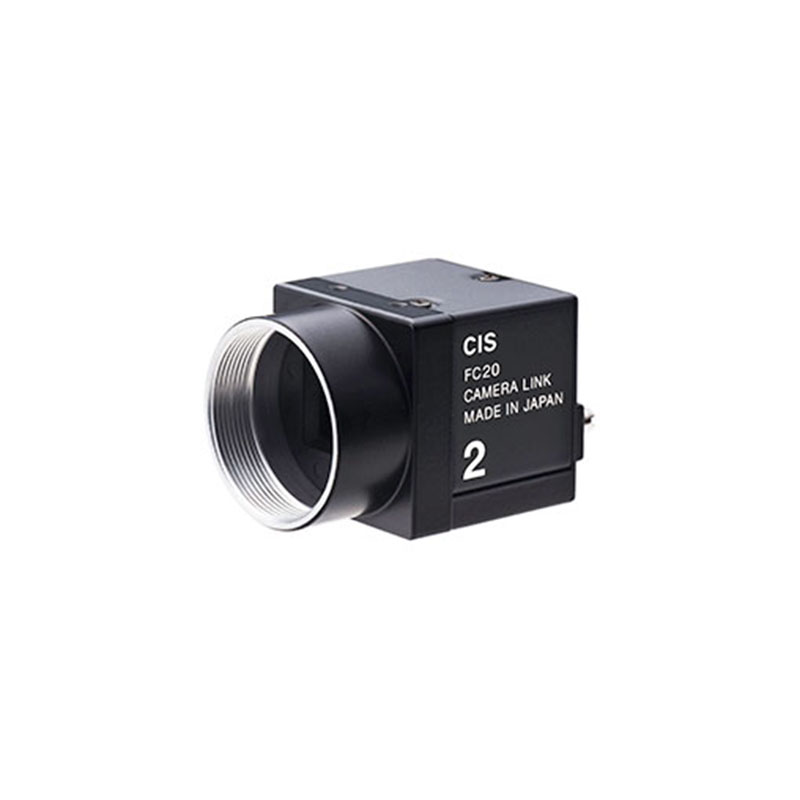

70fps with 2M pixels resolution, very high speed camera with 29mm cubic in size, approx. 50g. Best suited for speed and size-concious camera link embedded systems, such as bottle inspection, label inspection, semiconductor, LCD, LED Wafer related systems, and others.
29mm cubic High Speed
· High speed
· 29mm cubic in size
· Low power consumption
· C lens mount
· External trigger
· 8bit / 10bit output

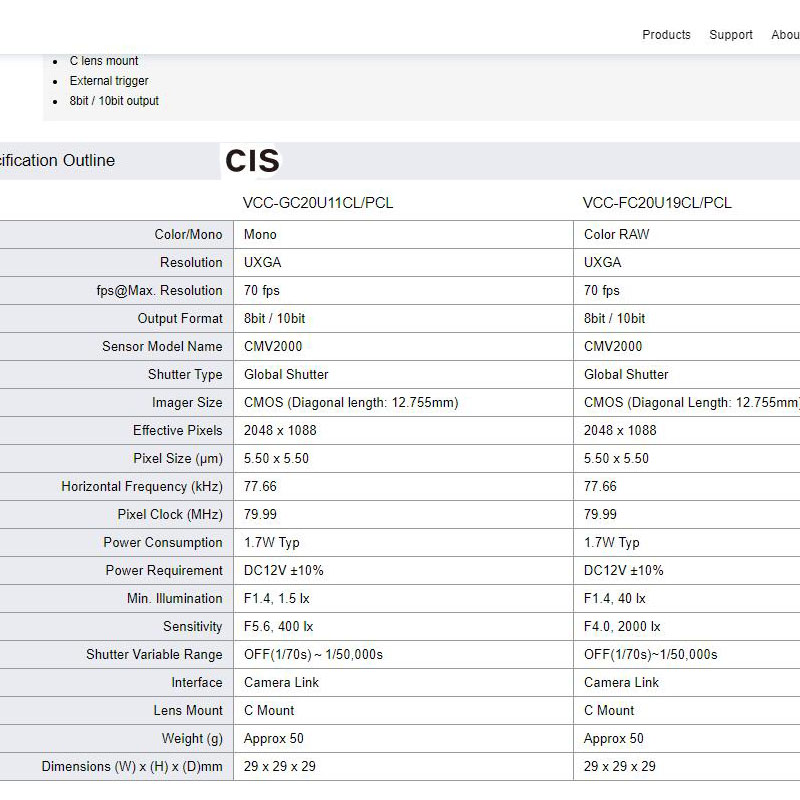

VCC-GC20U11CL/PCL
VCC-FC20U19CL/PCL
Color/Mono
Mono
Color RAW
Resolution
UXGA
fps@Max. Resolution
70 fps
Output Format
8bit / 10bit
Sensor Model Name
CMV2000
Shutter Type
Global Shutter
Imager Size
CMOS (Diagonal length: 12.755mm)
CMOS (Diagonal Length: 12.755mm)
Effective Pixels
2048 x 1088
Pixel Size (μm)
5.50 x 5.50
Horizontal Frequency (kHz)
77.66
Pixel Clock (MHz)
79.99
Power Consumption
1.7W Typ
Power Requirement
DC12V ±10%
Min. Illumination
F1.4, 1.5 lx
F1.4, 40 lx
Sensitivity
F5.6, 400 lx
F4.0, 2000 lx
Shutter Variable Range
OFF(1/70s)～1/50,000s
OFF(1/70s)~1/50,000s

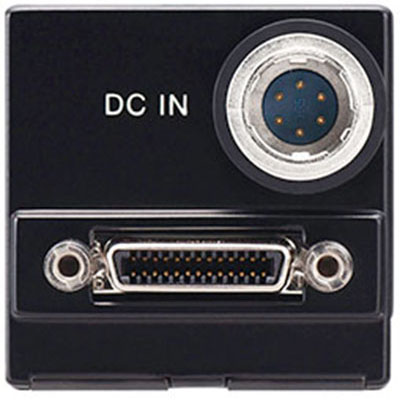

Interface
Camera Link
Lens Mount
C Mount
Weight (g)
Approx 50
Dimensions (W) x (H) x (D)mm
29 x 29 x 29
