FWB-PCI3202B

您的当前位置: 首 页 >> 产品中心 >> 图像采集卡

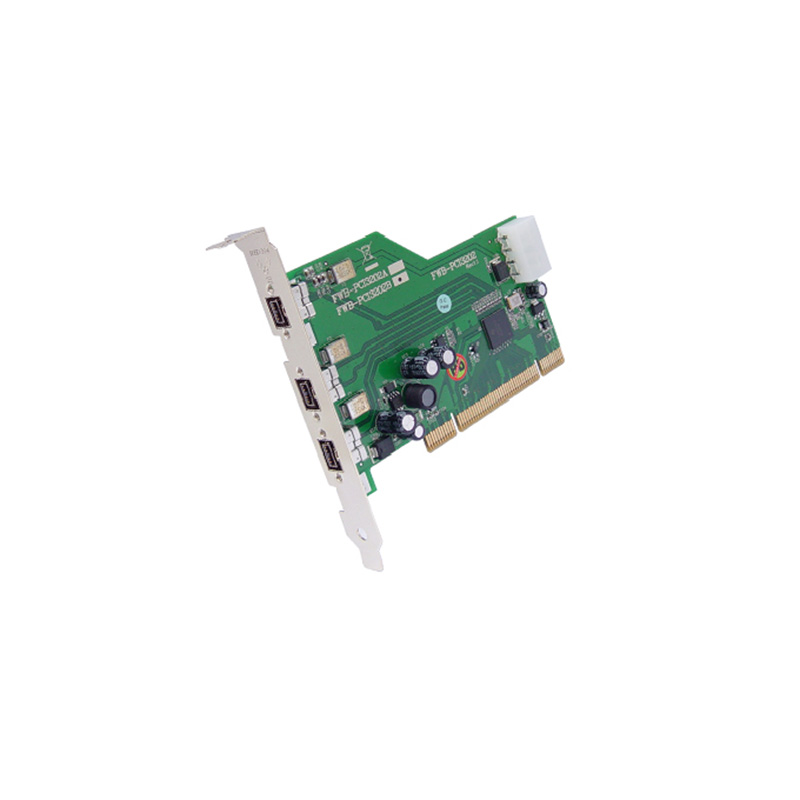

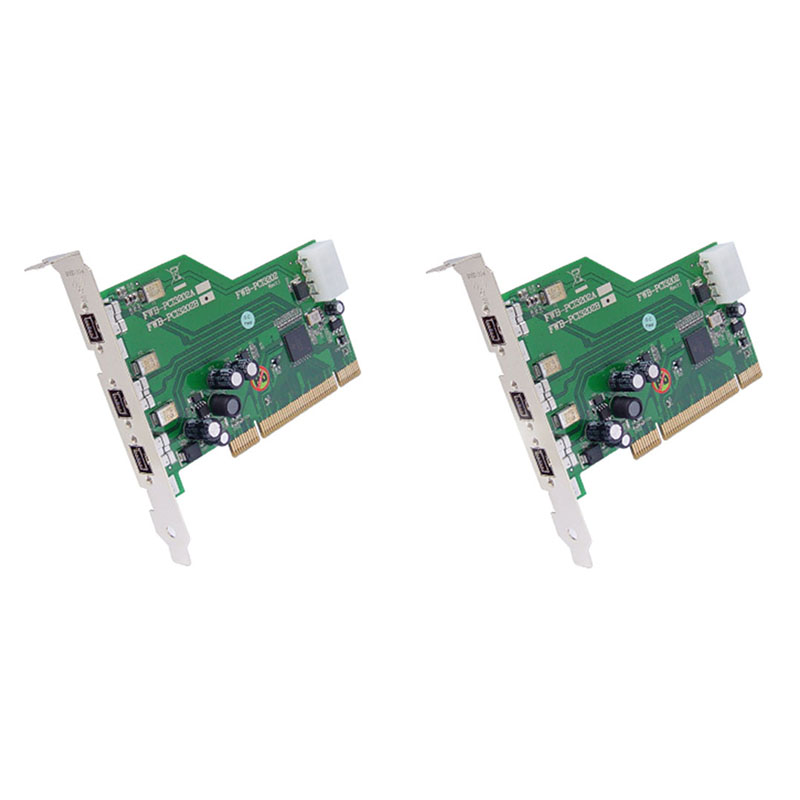

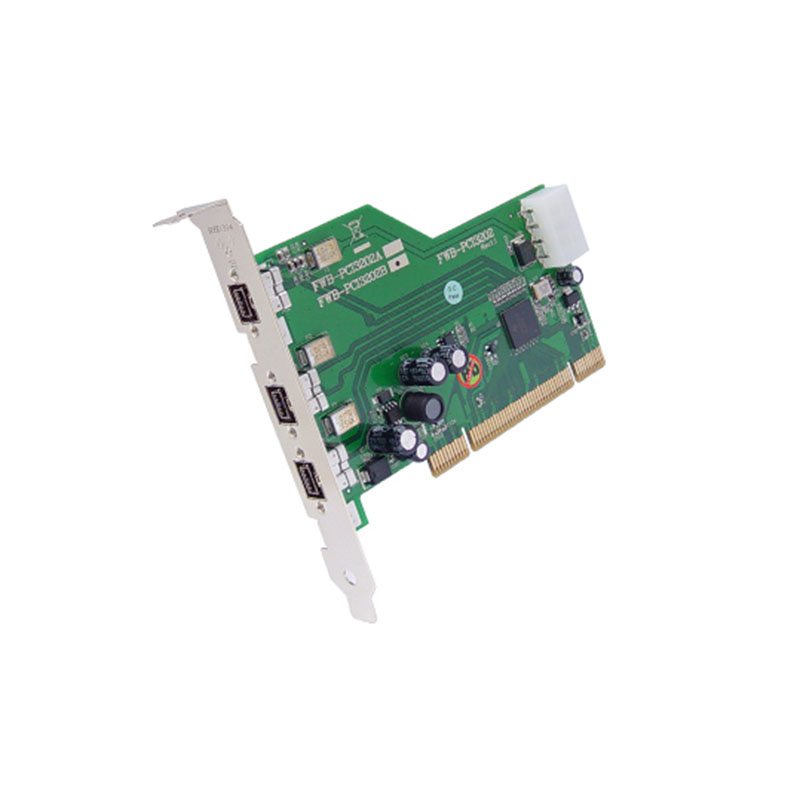

FWB-PCI3202B

  • 所属分类:图像采集卡

  • 型号:FWB-PCI3202B1394b(FireWire)AOI工业相机采集卡
  • 点击次数:
  • 发布日期:2023/06/10
  • 在线询价
详细介绍

图像采集卡

FWB-PCI3202B价格

FWB-PCI3202B批发

IOI FWB-PCI3202B 1394b(FireWire) to PCI Host Card 采集卡



全新  大量现货



Highlights

· 32-bit PCI Host interface

· Three External Bilingual (1394b) connectors (with screw lock)

· Big IDE 4-pin DC Power Connector for supplying power to the 1394 Bus



Introduction

FWB-PCI3202B is a three port OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) PCI Host Adapter featuring Texas Instruments OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) Single Chip Host Controller.



Technical Specifications

Host Bus:· 33-MHz/32-Bit PCI Interface· 3.3-V and 5-V PCI Signaling EnvironmentsIEEE 1394 Std Support:· Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates· Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus· Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 13941394 Bus Transfer Rate:Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).IEEE-1394 to PCI Controller· Texas Instruments TSB83AA23· PCI burst transfers and deep FIFOs to tolerate large host latencyo Transmit FIFO—5K asynchronouso Transmit FIFO—2K isochronouso Receive FIFO—2K asynchronouso Receive FIFO—2K isochronousDV and DA Enhancement:· Digital Video and Audio performance enhancements.· Extended resume signaling for compatibility with legacy DV components.Power Management :D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface SpecificationNumber of ports:· FWB-PCI3202B: Three External Bilingual Ports (with screw lock)Bus Power Connector:Big IDE 4-pin DC Power Connector





Operating System Requirements

· Windows 2000/XP/7/8/8.1 and Windows Server 2003

· Linux kernel 2.6.14 or later

· Mac OS X 10.3 or later

具体咨询高工13418972091  刘小姐13530322040
