basler acA800-200gc

您的当前位置: 首 页 >> 产品中心 >> BASLER

basler acA800-200gc

  • 所属分类:BASLER

  • 型号:basler acA800-200gc
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍

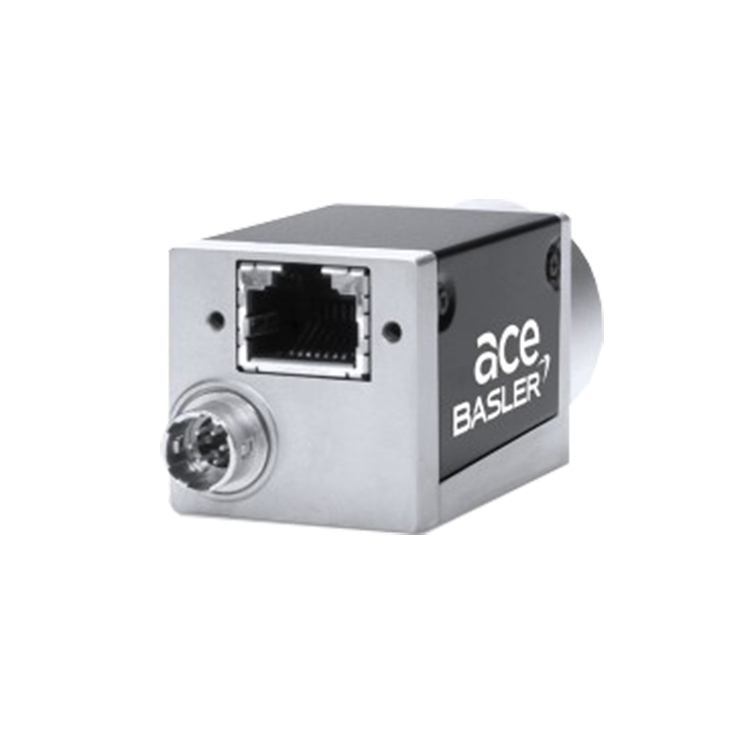

acA800-200gc

The acA800-200gc Basler ace GigE camera with an ON Semiconductor PYTHON 500 color CMOS sensor delivers 240 frames per second at CCIR resolution.

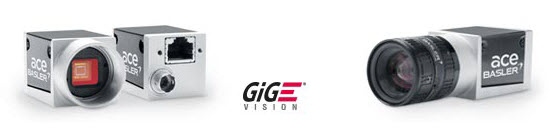

Basler ace GigE Cameras


basler acA800-200gc

basler acA800-200gc

basler acA800-200gc


Specifications

General Specifications

SpecificationacA800-200gc

Resolution
(H x V Pixels)

832 x 632 (full resolution)

800 x 600 (default resolution)

You can change the resolution by changing the Image ROI.

Sensor Type

ON Semiconductor®

PYTHON NOIP1SE0500A

Progressive scan CMOS

Global shutter

Optical Size

1/3.6"

Effective Sensor Diagonal

4.8 mm

Pixel Size (H x V)

4.8 μm x 4.8 μm

Frame Rate

240 fps (at fast sensor readout mode and default resolution)

199 fps (at normal sensor readout mode and default resolution)

Product Line

ace U

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12–24 VDC supplied via I/O connector

≈3.3 W (typical), ≈3.5 W (max.) when using Power over Ethernet

≈2.9 W (typical), ≈3.1 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines

opto-coupled input line

opto-coupled output line

general purpose I/O (GPIO) line

Lens Mount

C-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

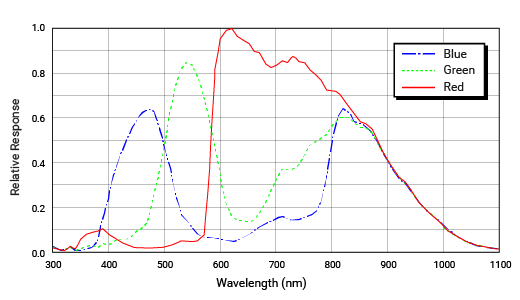

Spectral Response

basler acA800-200gc

The spectral response curve excludes lens characteristics, light source characteristics, and IR cut filter characteristics.

IR Cut Filter

Color cameras are equipped with an IR cut filter. The filter is mounted in a filter holder inside the lens mount.

The IR cut filter has the following spectral characteristics:

Wavelength [nm]Transmittance
450–610Tmin > 90 %
450–620Tavg > 93 %
645 ± 10T = 50 %
700–1070Tmax < 4 %
690–1070Tavg < 1 %

The filter holder can't be removed.

Mechanical Specifications

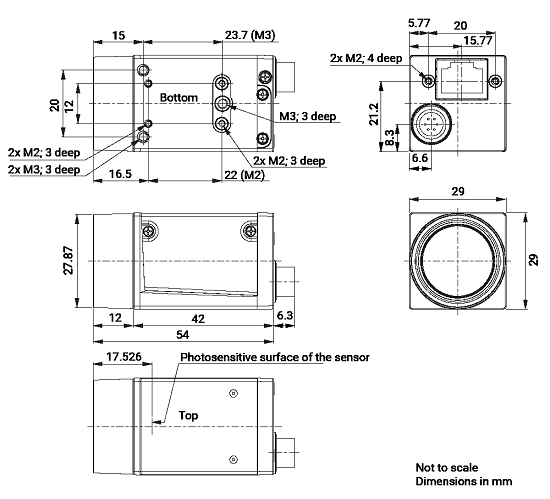

Camera Dimensions and Mounting Points

basler acA800-200gc
