acA1300-60gc

您的当前位置: 首 页 >> 产品中心 >> BASLER

acA1300-60gc

  • 所属分类:BASLER

  • 型号:acA1300-60gc
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍

acA1300-60gc

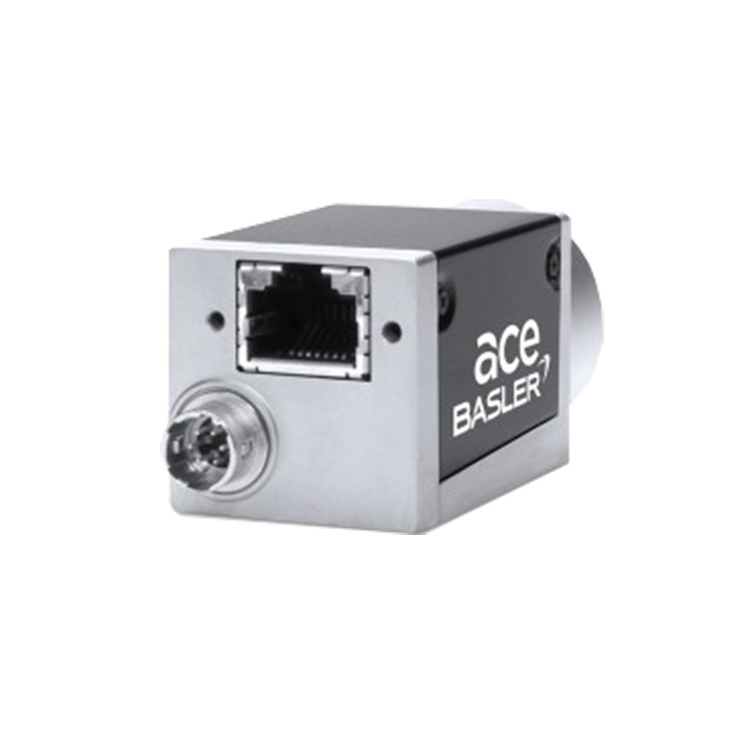

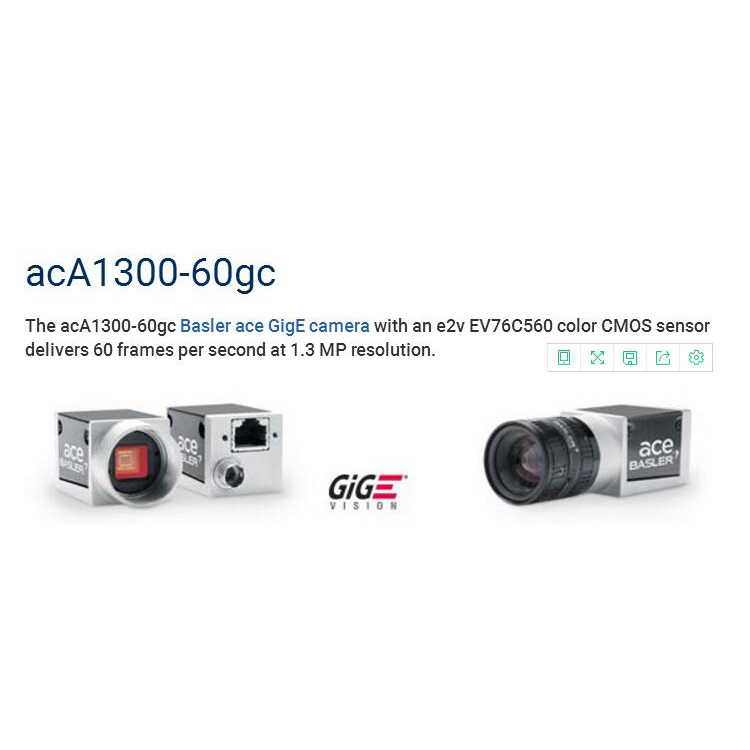

The acA1300-60gc Basler ace GigE camera with an e2v EV76C560 color CMOS sensor delivers 60 frames per second at 1.3 MP resolution.

General Specifications

SpecificationacA1300-60gc

Resolution
(H x V Pixels)

1280 x 1024

Sensor Type

e2v EV76C560 ACT

Progressive scan CMOS

Global shutter

Rolling shutter

The shutter mode can be set via software.

Optical Size

1/1.8"

Effective Sensor Diagonal

8.7 mm

Pixel Size (H x V)

5.3 μm x 5.3 μm

Frame Rate
(at Default Settings)

60 fps

Product Line

ace classic

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈2.6 W when using Power over Ethernet

≈2.0 W @ 12 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

Lens Mount

C-mount, CS-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

acA1300-60gc

acA1300-60gc

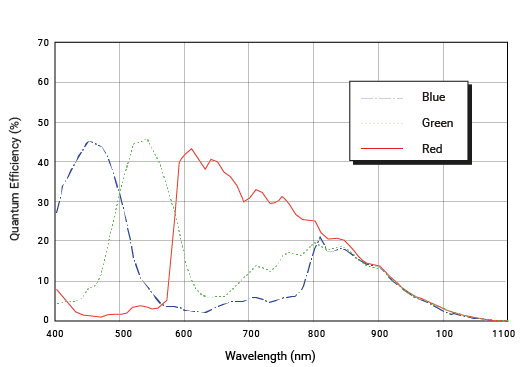

Spectral Response

acA1300-60gc


acA1300-60gc

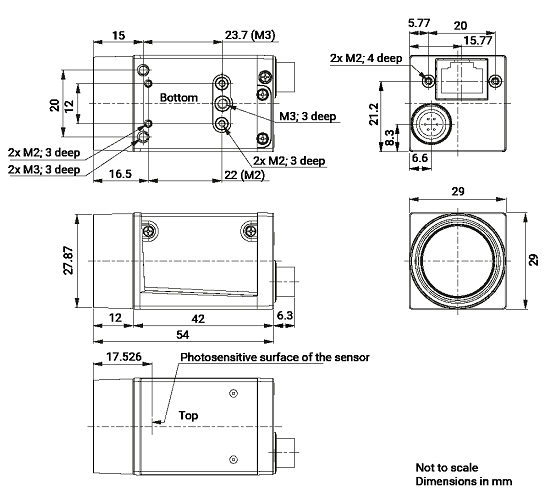

CS-Mount Camera Models

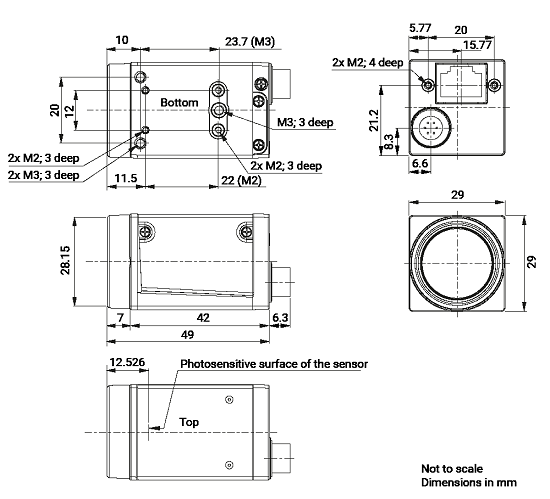

Mechanical Dimensions (in mm) for Cameras with CS-mount Lens Mount
