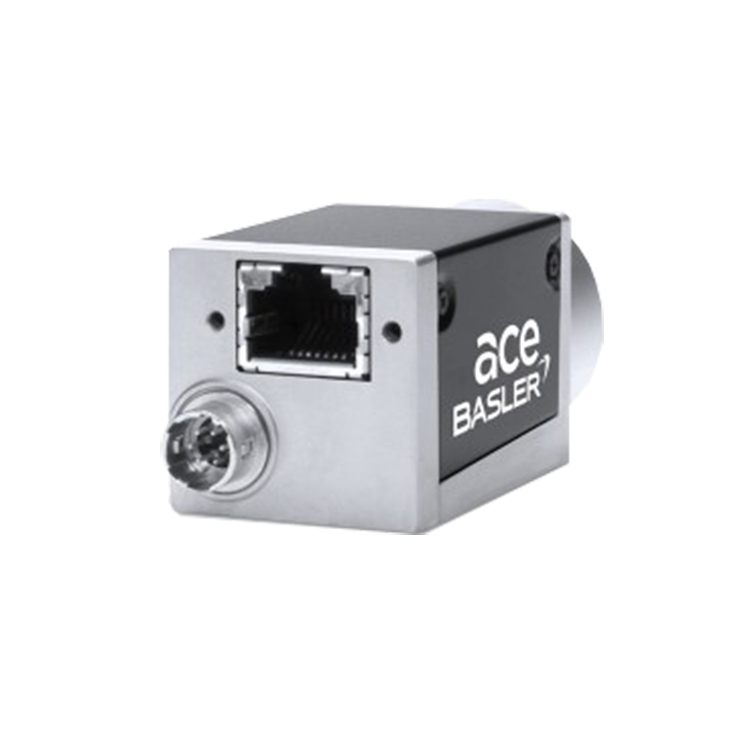

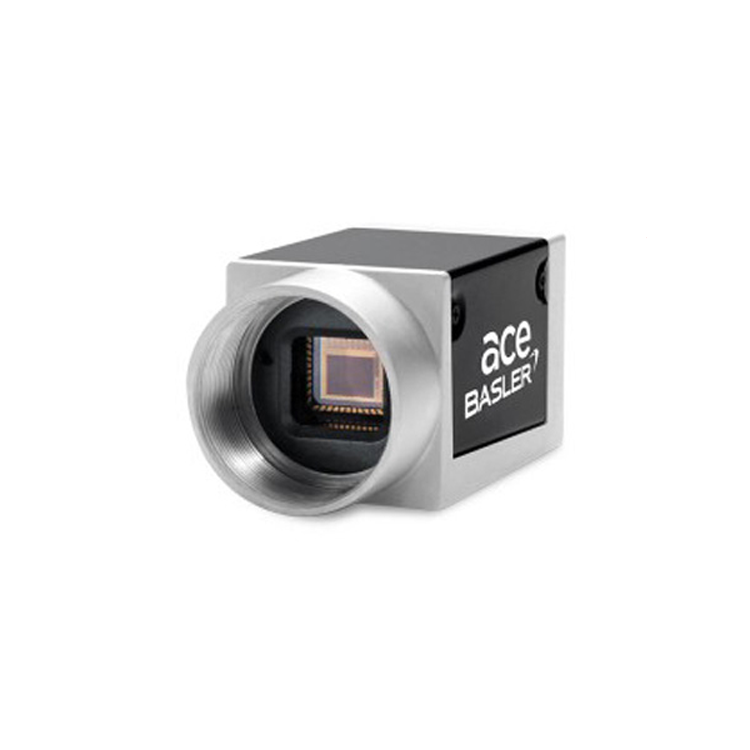

acA1920-48gm

  The acA1920-48gm Basler ace GigE camera with an ON Semiconductor PYTHON 2000 mono CMOS sensor delivers 50 frames per second at 2.3 MP resolution.

acA1920-48gm

General SpecificationsSpecifications

SpecificationacA1920-48gm

Resolution
(H x V Pixels)

1984 x 1264 (full resolution)

1920 x 1200 (default resolution)

You can change the resolution by changing the Image ROI.

Sensor Type

ON Semiconductor®

PYTHON NOIP1SN2000A

Progressive scan CMOS

Global shutter

Optical Size

2/3"

Effective Sensor Diagonal

10.9 mm

Pixel Size (H x V)

4.8 μm x 4.8 μm

Frame Rate

50 fps (at fast sensor readout mode and default resolution)

43 fps (at normal sensor readout mode and default resolution)

Product Line

ace U

Mono / Color

Mono

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12–24 VDC supplied via I/O connector

≈3.7 W (typical), ≈3.9 W (max.) when using Power over Ethernet

≈3.3 W (typical), ≈3.5 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

1 general purpose I/O (GPIO) line

Lens Mount

C-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

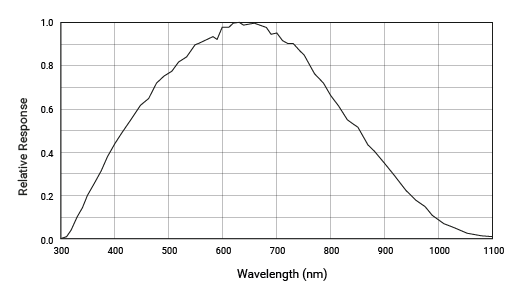

Spectral Response

acA1920-48gm

The spectral response curve excludes lens characteristics and light source characteristics.

Mechanical Specifications

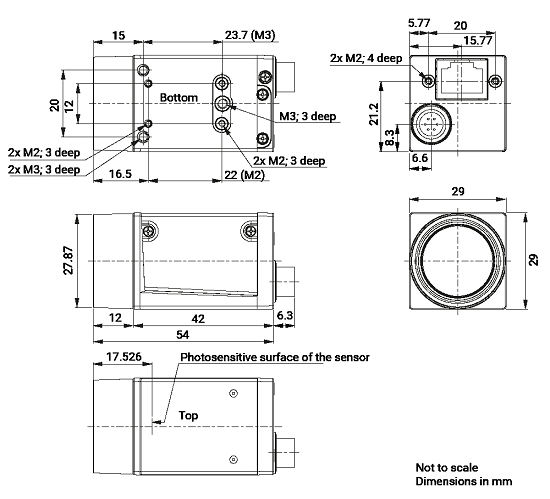

Camera Dimensions and Mounting Points

acA1920-48gm

acA1920-48gm
