acA2040-35gm

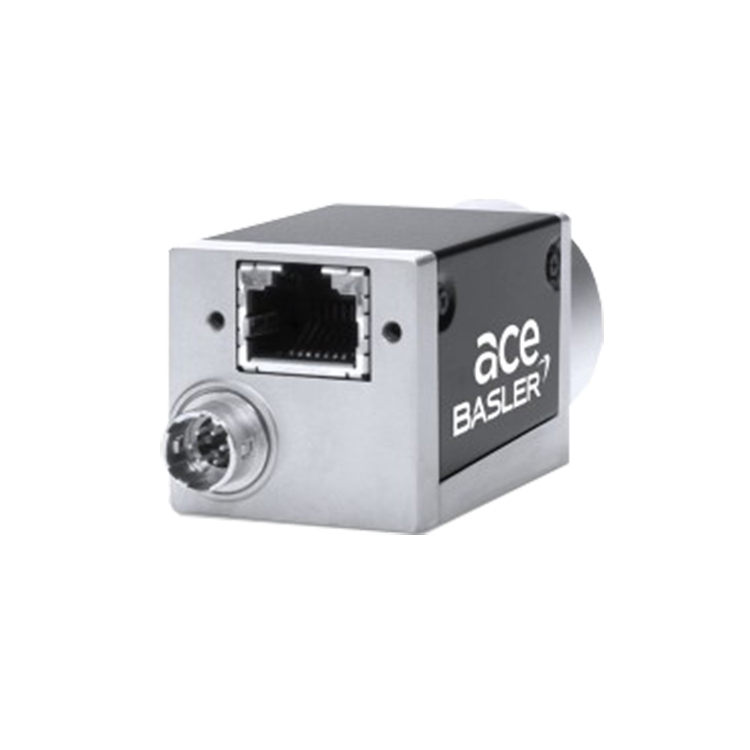

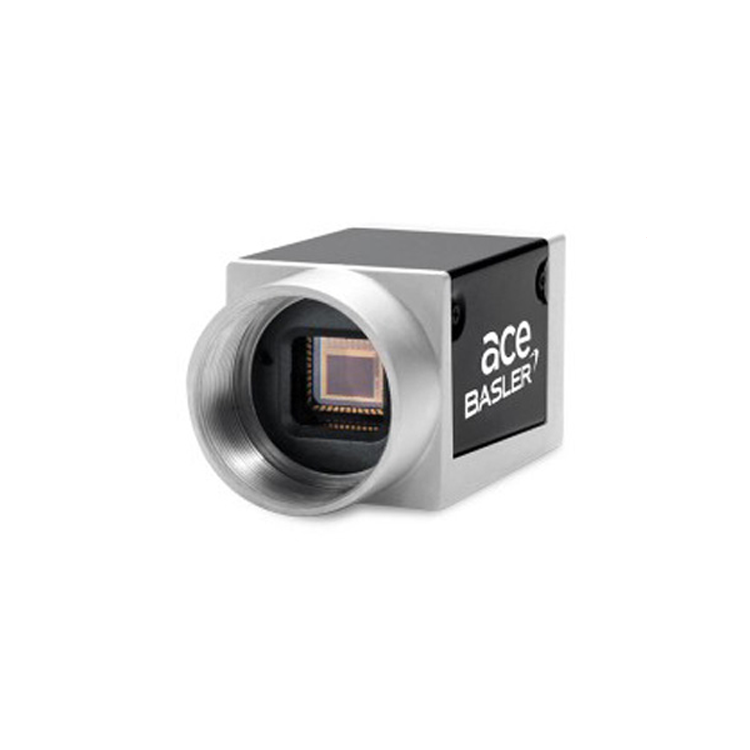

The acA2040-35gm Basler ace GigE camera with a Sony IMX265 mono CMOS sensor delivers 35 frames per second at 3.2 MP resolution.


acA2040-35gm


acA2040-35gm

acA2040-35gm

General SpecificationsSpecifications

SpecificationacA2040-35gm

Resolution
(H x V Pixels)

2064 × 1544 (full resolution)

2048 x 1536 (default resolution)

You can change the resolution by changing the Image ROI.

Sensor Type

Sony IMX265LLR-C

Progressive scan CMOS

Global shutter

Optical Size

1/1.8"

Effective Sensor Diagonal

8.9 mm

Pixel Size (H x V)

3.45 μm × 3.45 μm

Frame Rate

(at Default Settings)

36 fps

Product Line

ace U

Mono / Color

Mono

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12–24 VDC supplied via I/O connector

≈3.2 W (typical), ≈3.7 W (max.) when using Power over Ethernet

≈2.7 W (typical), ≈3.4 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

1 general purpose I/O (GPIO) line

Lens Mount

C-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

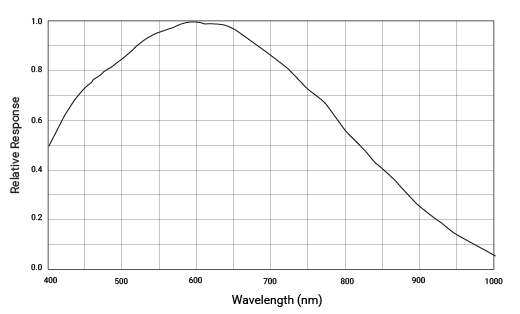

Spectral Response

acA2040-35gm

The spectral response curve excludes lens characteristics and light source characteristics.

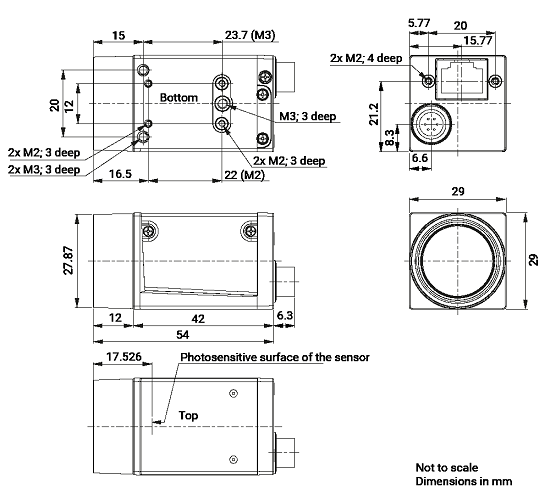

Mechanical Specifications

Camera Dimensions and Mounting Points

acA2040-35gm
