DMK23G618

您的当前位置: 首 页 >> 产品中心 >> 映镁精工业相机

DMK23G618

  • 所属分类:映镁精工业相机

  • 型号:DMK23G618
  • 点击次数:
  • 发布日期:2019/10/18
  • 在线询价
详细介绍

 灰点工业相机

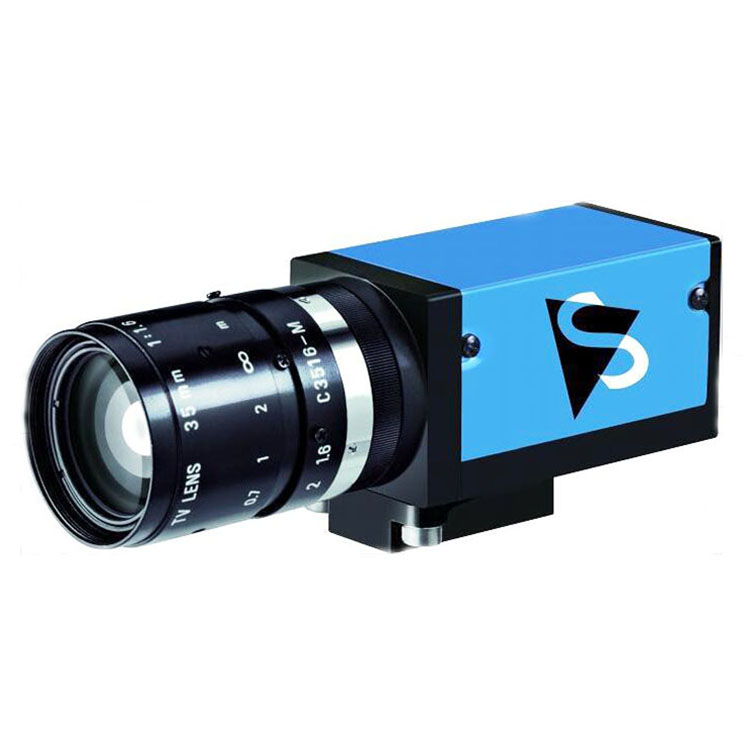

DMK 23G618工业相机

GigE CCD单色相机
1/4 " Sony CCD, 逐行扫描
640x480 像素, 高达 120 帧/秒
外触发输入及外部I/O接口
与大部分模拟相机的相符
附带软件
规格文档驱动程序与软件The Imaging Source DMK 23G618 // GigE CCD单色相机
可能改变
一般性能
视频格式@帧速率 640x480 Y800 @ 120, 90, 60, 30, 15, 7.5, 3.75 fps
640x480 Y16 @ 120, 90, 60, 30, 15, 7.5, 3.75 fps

感光度 0.015 lx
动态范围 8 / 12 比特
介面(光学)
红外滤光片
感光元件规格  ICX618ALA [334.22 KB]
类型 逐行扫描
格式 1/4 "
分辨率 水平: 640, 垂直: 480
像素尺寸 水平: 5.6 μm, 垂直: 5.6 μm
镜头装配 C/CS
介面(电气)
供应电压 11 到 13 VDC 或 PoE: 48 至 56 VDC
消耗电流 400 mA @ 12 VDC
介面(机械)
体积 高度: 29 mm, 宽度: 29 mm, 长度: 57 mm
重量 65 g
调整(手动)
快门 1/100000 到 30 s
增益 0 到 36 dB
调整(自动)
快门 1/100000 到 30 s
增益 0 到 36 dB
环境
zui高温度(操作) -5 °C 至 45 °C
zui高温度(存放) -20 °C 至 60 °C
zui高湿度(操作) 20 % 至 80 % 不凝结
zui高湿度(存放) 20 % 至 95 % 不凝结

DMK 23G618 CCD,120帧,640x480,软、硬触发及I/O,POE

DMK 23G445 CCD,30帧,1280x960,软、硬触发及I/O,POE

DMK 23G274 CCD,20帧,1600x1200,软、硬触发及I/O,POE

DMK 23GV024      "CMOS,100帧,752x480,软、硬触发及I/O,POE,可裁剪提高帧率,如640x480@115FPS"

DMK 23GP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,POE,可BINNING和裁剪提高帧率"

DMK 23GM021      CMOS,60帧,1280x960,软、硬触发及I/O,POE

DFK 23G618 CCD,120帧,640x480,软、硬触发及I/O,POE

DFK 23G445 CCD,30帧,1280x960,软、硬触发及I/O,POE

DFK 23G274 CCD,20帧,1600x1200,软、硬触发及I/O,POE

DFK 23GV024      "CMOS,100帧,752x480,软、硬触发及I/O,POE,可裁剪提高帧率,如640x480@115FPS"

DFK 23GP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,POE,可BINNING和裁剪提高帧率"

DFK 23GM021      CMOS,60帧,1280x960,软、硬触发及I/O,POE

DMK 23F618 CCD,120帧,640x480,软、硬触发及I/O

DMK 23F445 CCD,30帧,1280x960,软、硬触发及I/O

DMK 23F274 CCD,20帧,1600x1200,软、硬触发及I/O

DMK 23FV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DMK 23FP031      "CMOS,11帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DMK 23FM021      CMOS,60帧,1280x960,软、硬触发及I/O

DFK 23F618 CCD,120帧,640x480,软、硬触发及I/O

DFK 23F445 CCD,30帧,1280x960,软、硬触发及I/O

DFK 23F274 CCD,20帧,1600x1200,软、硬触发及I/O

DFK 23FV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DFK 23FP031      "CMOS,11帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DFK 23FM021      CMOS,60帧,1280x960,软、硬触发及I/O

DMK 23U618 CCD,120帧,640x480,软、硬触发及I/O

DMK 23U445 CCD,30帧,1280x960,软、硬触发及I/O

DMK 23U274 CCD,20帧,1600x1200,软、硬触发及I/O

DMK 23UV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DMK 23UP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DMK 23UM021      CMOS,60帧,1280x960,软、硬触发及I/O

DFK 23U618 CCD,120帧,640x480,软、硬触发及I/O

DFK 23U445 CCD,30帧,1280x960,软、硬触发及I/O

DFK 23U274 CCD,20帧,1600x1200,软、硬触发及I/O

DFK 23UV024      "CMOS,100帧,752x480,软、硬触发及I/O,可裁剪提高帧率,如640x480@115FPS"

DFK 23UP031      "CMOS,15帧,2592x1944,软、硬触发及I/O,可BINNING和裁剪提高帧率"

DFK 23UM021      CMOS,60帧,1280x960,软、硬触发及I/O

DMK 22AUC03      1/3"/744x480/60fps

DMK 22BUC03      1/3"/744x480/60fps

DMK 72AUC02      1/2.5"/2592x1944/6fps

DMK 72BUC02      1/2.5"/2592x1944/6fps

DMK 42AUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DMK 42BUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DFK 22AUC03      1/3"/744x480/60fps

DFK 22BUC03      1/3"/744x480/60fps

DFK 72AUC02      1/2.5"/2592x1944/7fps

DFK 72BUC02      1/2.5"/2592x1944/7fps

DFK 42AUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOUT

DFK 42BUCO3      1/2"CMOS,全局快门,30帧,1280x960,软、硬触发及GPOU
