Manta G-040

AVT Manta G-040B/C性能参数

工业相机视觉检测0.4 MP摄像头286.3 fps

Gige 728 (H) × 544 (V) Sony IMX287 Type 1/2.9

联系销售人员

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional

分辨率

728 (H) × 544 (V)

传感器

Sony IMX287

传感器类型

CMOS

传感器尺寸

Type 1/2.9

像元尺寸

6.90 µm × 6.90 µm

Shutter mode

Global shutter

Lens mounts (available)

C-Mount, CS-Mount, M12-Mount

最大满帧帧率

286.3 fps

ADC

12 Bit

缓存 (RAM)

128 MByte

非易失性内存 (Flash)

1024 KByte (for selected models only)

成像性能

成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量单色模型的典型值。请联系销售或工程师了解更多信息。

在波长为529nm下，量子转换效率

64 %

暗噪声

3.1 eˉ

饱和电子数

20800 eˉ

动态范围

74.4 dB

绝对灵敏度阈值

4.0 eˉ

输出

Bit位数

8-12 Bit

黑白像素格式

Mono8, Mono12Packed, Mono12

原始像素格式

BayerRG8, BayerRG12, BayerRG12Packed

通用输入输出口(GPIOs)

光耦 I/Os

2 inputs, 2 outputs

RS232

1

工作条件/尺寸

工作温度

+5 °C to +45 °C ambient (without condensation)

电源要求 (DC)

8 to 30 VDC AUX or IEEE 802.3af PoE

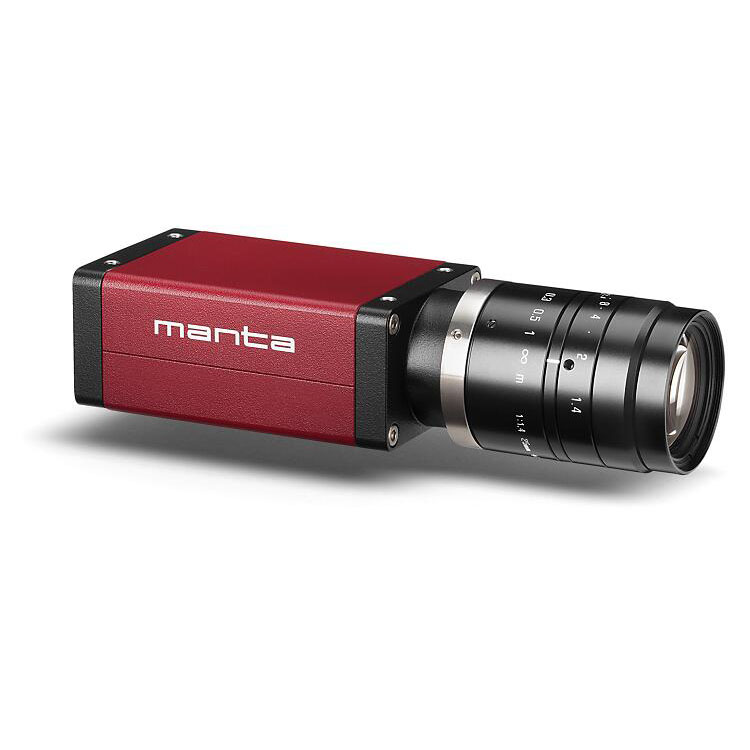

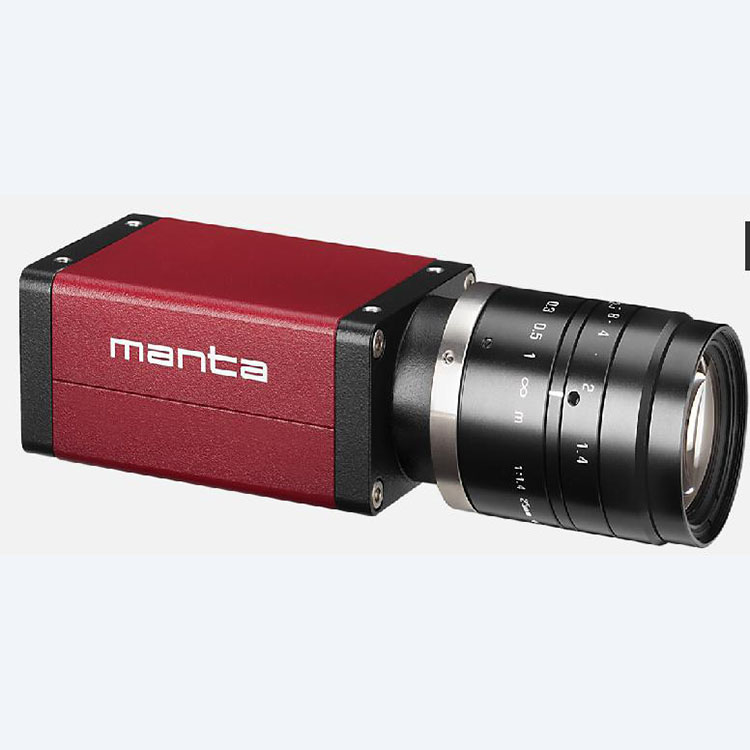

GigE Vision camera featuring the Sony IMX287 CMOS sensor

Manta G-040 is a 0.40 Megapixel machine vision camera with a GigE compliant Gigabit Ethernet port and Hirose I/O port. Manta G-040 incorporates the high quality Type 1/2.9 (6.3 mm diagonal) Sony IMX287 CMOS sensor with Pregius global shutter technology. The Sony IMX287 CMOS sensor provides high frame rates, high sensitivity, and excellent picture quality. The Manta G-040 is offered in monochrome and color models. At full resolution, this camera achieves 286.3 frames per second. With a smaller region of interest, higher frame rates are possible. You can also achieve a higher frame by adjusting the packet size. The Manta G-040 is an ideal replacement for legacy CCD models.

Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options. By default monochrome models ship with B 270 ASG protection glass and color models ship with a Hoya C-5000 IR cut filter.

Benefits and features:

· Monochrome (G-040B) and color (G-040C) models

· GigE Vision interface with Power over Ethernet option

· Screw mount RJ45 Ethernet connector for secure operation in industrial environments

· Supports cable lengths up to 100 meters (CAT-5e or CAT-6)

· Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs

· Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter

· Comprehensive I/O functionality for simplified system integration

· Popular C-Mount lens mount

· Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.

Options:

· Available with Power over Ethernet (PoE) compliant interface

· Available with B 270 ASG protection glass, Jenofilt 217 IR cut filter, Hoya C-5000 IR cut filter, RG715 IR pass filter, or RG830 IR pass filter

· Available with various angled-head housings or board level version

· Available with white medical design

See the Modular Concept for lens mount, housing variants, optical filters, case design, and other modular options. See the Customization and OEM Solutions page for additional options.

导入书签！

功耗

External power: 2.77 W at 12 VDC | Power over Ethernet: 3.23 W

重量

190 g; 200 g (PoE models)

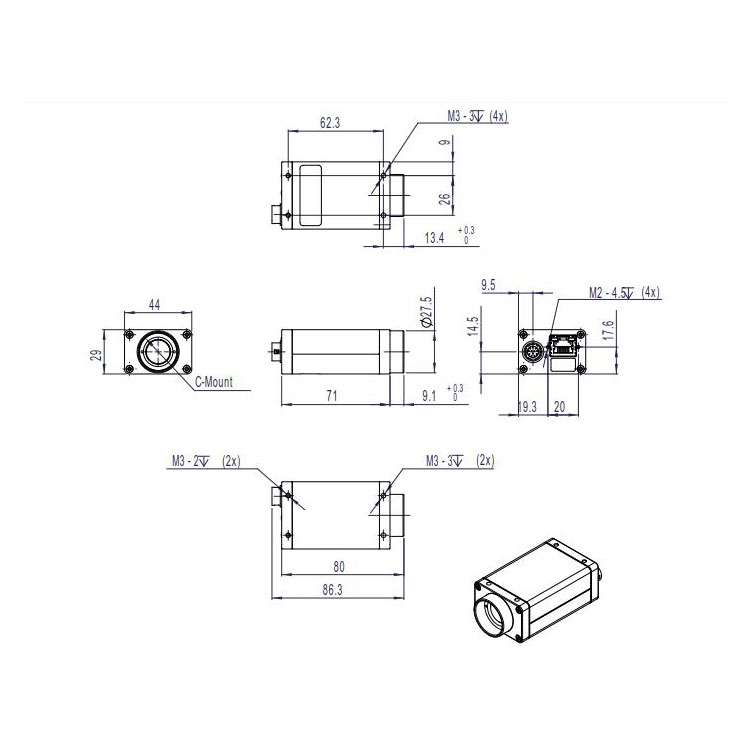

尺寸 (L × W × H in mm)

86.34 × 44 × 29 (including connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-3 (B)
