Manta G-145

Manta G-145B/C性能参数

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional

分辨率

1388 (H) × 1038 (V)

传感器

Sony ICX285

传感器类型

CCD Progressive

传感器尺寸

Type 2/3

像元尺寸

6.45 µm × 6.45 µm

Shutter mode

Global shutter

Lens mounts (available)

C-Mount, CS-Mount, M12-Mount

最大满帧帧率

15.0 fps

ADC

12 Bit

缓存 (RAM)

32 MByte

非易失性内存 (Flash)

192 KByte (for selected models only)

成像性能

成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量单色模型的典型值。请联系销售或工程师了解更多信息。

在波长为529nm下，量子转换效率

54 %

暗噪声

10.4 eˉ

饱和电子数

18100 eˉ

动态范围

64.3 dB

绝对灵敏度阈值

11.0 eˉ

输出

Bit位数

8-12 Bit

黑白像素格式

Mono8, Mono12, Mono12Packed

原始像素格式

BayerRG8, BayerRG12Packed, BayerRG12

通用输入输出口(GPIOs)

光耦 I/Os

2 inputs, 2 outputs

RS232

1

工作条件/尺寸

工作温度

+5 °C to +45 °C ambient (without condensation)

电源要求 (DC)

8 to 30 VDC AUX or IEEE 802.3af PoE

功耗

External power: 3.7 W at 12 VDC | Power over Ethernet: 4.3 W

重量

200 g; 210 g (PoE)

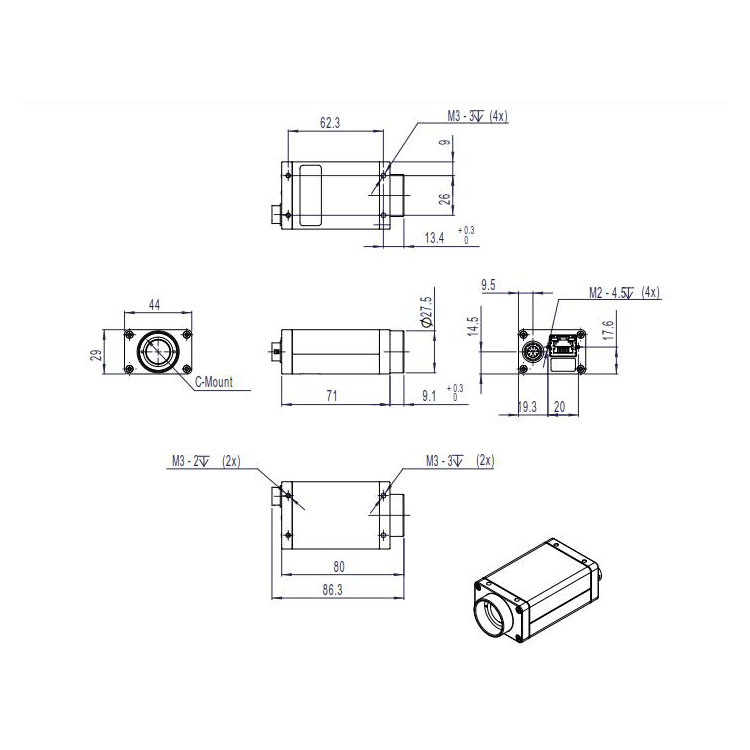

尺寸 (L × W × H in mm)

86.4 × 44 × 29 (including connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-3 (B

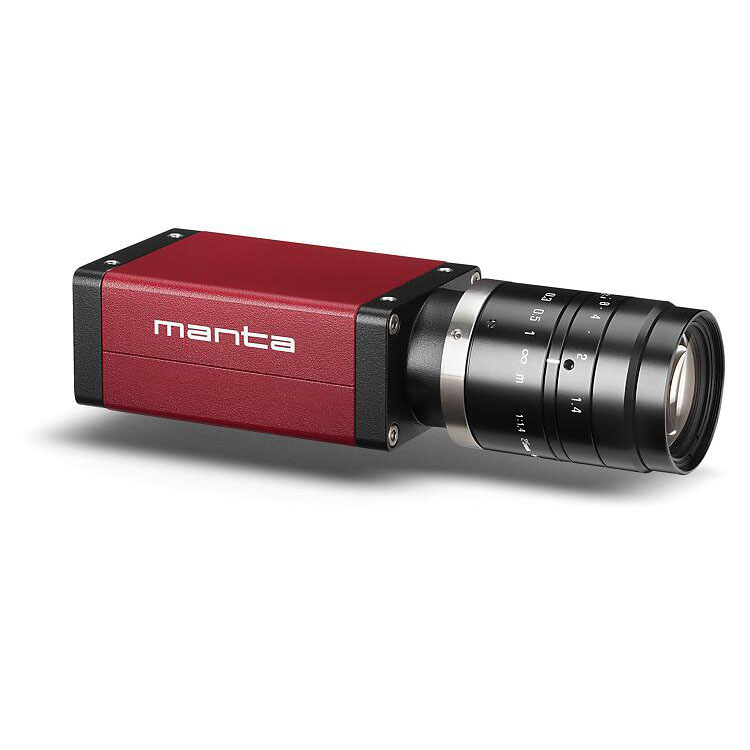

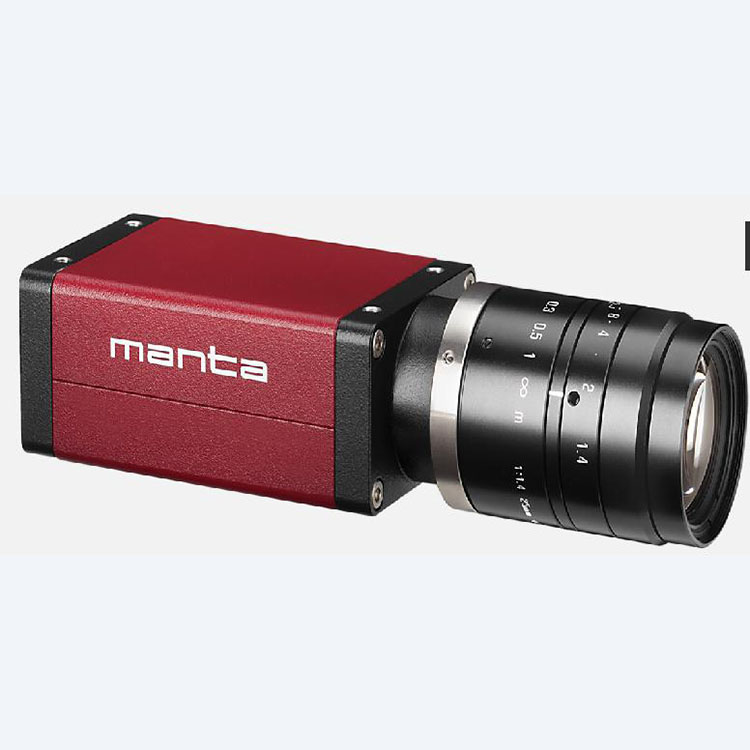

GigE Vision camera with Sony ICX285 EXview HAD CCD sensor

Manta G-145 is an inexpensive GigE Vision camera. Manta G-145 is offered in both monochrome and color models. It incorporates the very sensitive Type 2/3 (11.0 mm diagonal) Sony ICX285 CCD sensor with EXview HAD technology. At full resolution, this camera runs 15.0 frames per second. With a smaller region of interest, higher frame rates are possible.

Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options. By default monochrome models ship with B 270 ASG protection glass and color models ship with a Hoya C-5000 IR cut filter.

Benefits and features:

· Monochrome (G-145B) and color (G-145C) models

· GigE Vision interface with Power over Ethernet option

· Screw mount RJ45 Ethernet connector for secure operation in industrial environments

· Supports cable lengths up to 100 meters (CAT-5e or CAT-6)

· Comprehensive I/O functionality for simplified system integration

· Popular C-Mount lens mount

· Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter

· Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.

Options:

· Available with Power over Ethernet (PoE) compliant interface

· Available with CS-Mount or M12-Mount adapter

· Available with B 270 ASG protection glass, Jenofilt 217 IR cut filter, Hoya C-5000 IR cut filter, RG715 IR pass filter, or RG830 IR pass filter

· Available with various angled-head housings or board level version

· Available with white medical design

See the Modular Concept for lens mount, housing variants, optical filters, case design, and other modular options. See the Customization and OEM Solutions page for additional options.
