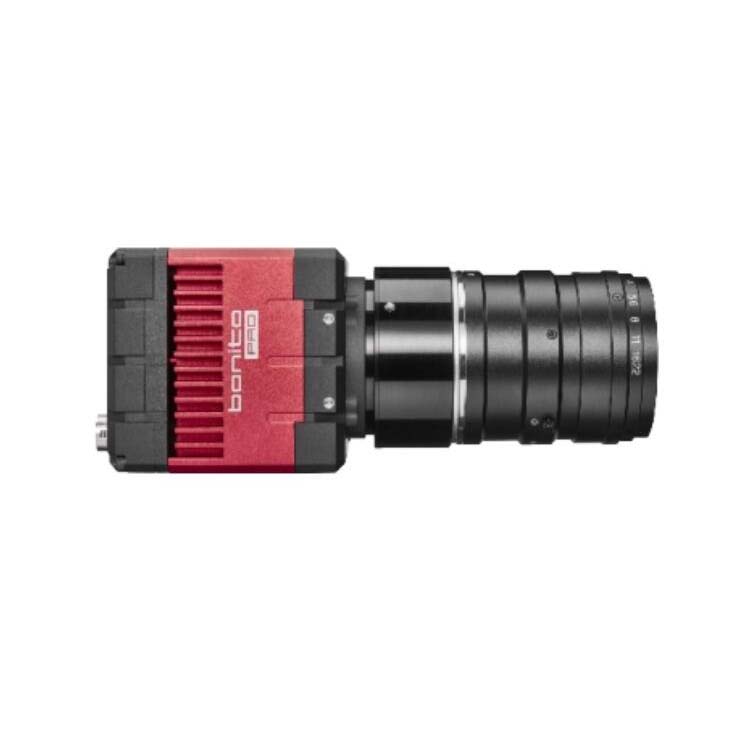

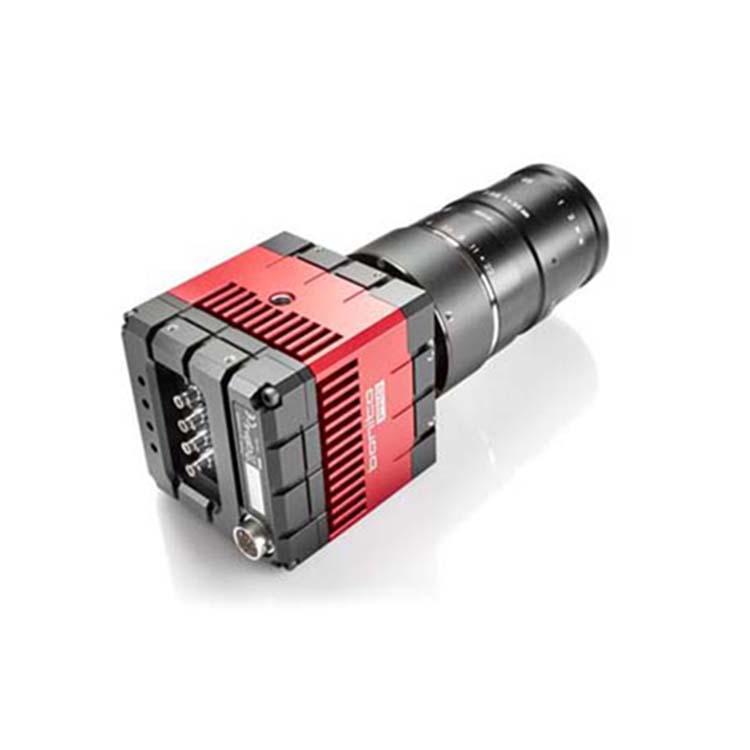

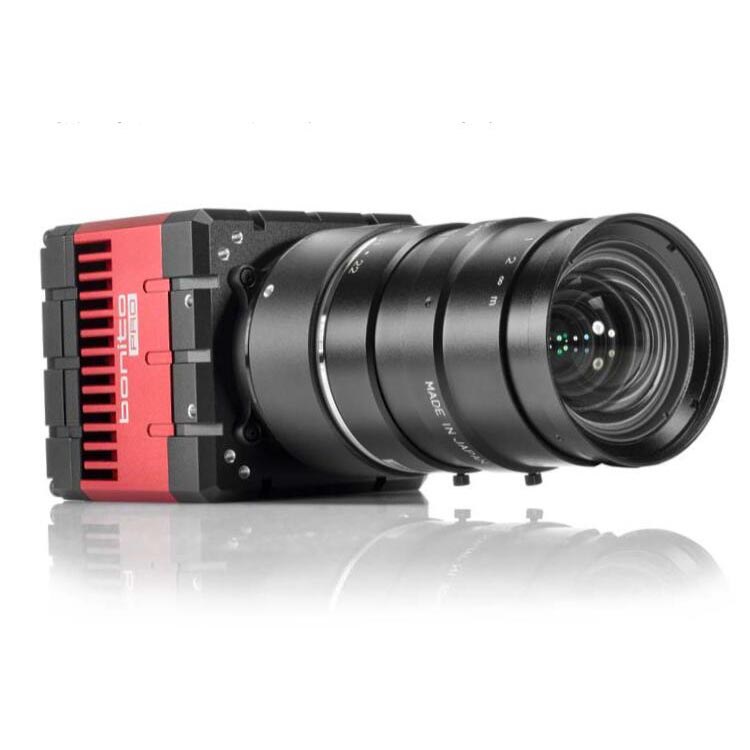

BONITO PRO X-2620B/C

· onochrome (X-2620B) and color (X-2620C) models

· Extended feature set with Sequencer Control and Multiple Region of Interest selection to support advanced imaging applications

· On-board Defect Pixel and 2D Fixed Pattern Noise Correction for improved image quality

接口

CoaXPress (CXP-6) 4 DIN

分辨率

5120 (H) × 5120 (V)

传感器

ON Semi PYTHON 25K

传感器类型

CMOS

传感器尺寸

Type APS-H

像元尺寸

4.5 µm × 4.5 µm

Shutter mode

Global shutter

Lens mounts (available)

F-Mount, F-Mount PA, M42-Mount, M58-Mount

最大满帧帧率

79.7 fps

ADC

10 Bit

非易失性内存 (Flash)

1024 KB

成像性能

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

在波长为529nm下，量子转换效率

55 %

暗噪声

14.7 eˉ

饱和电子数

8100 eˉ

动态范围

54.4 dB

绝对灵敏度阈值

15.5 eˉ

输出

Bit位数

10 Bit

黑白像素格式

Mono8, Mono10

原始像素格式

BayerRG8, BayerRG10

通用输入输出口(GPIOs)

TTL I/Os

1 input, 2 outputs

光耦 I/Os

1 input, 2 outputs

工作条件/尺寸

工作温度

-20 °C to +70 °C housing (without condensation)

电源要求 (DC)

24 VDC; PoCXP

功耗

External power: 15 W at 24 VDC | Power over CoaXPress: 15 W

重量

500 g (with F-Mount)

尺寸 (L × W × H in mm)

114.9 × 70 × 70 (with F-Mount and connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-3 (B)
