珠海Prosilica GT 2000NIR

所属分类：珠海Prosilca
型号：Prosilica GT 2000 NIR
点击次数：
发布日期：2020/02/01
在线询价

详细介绍

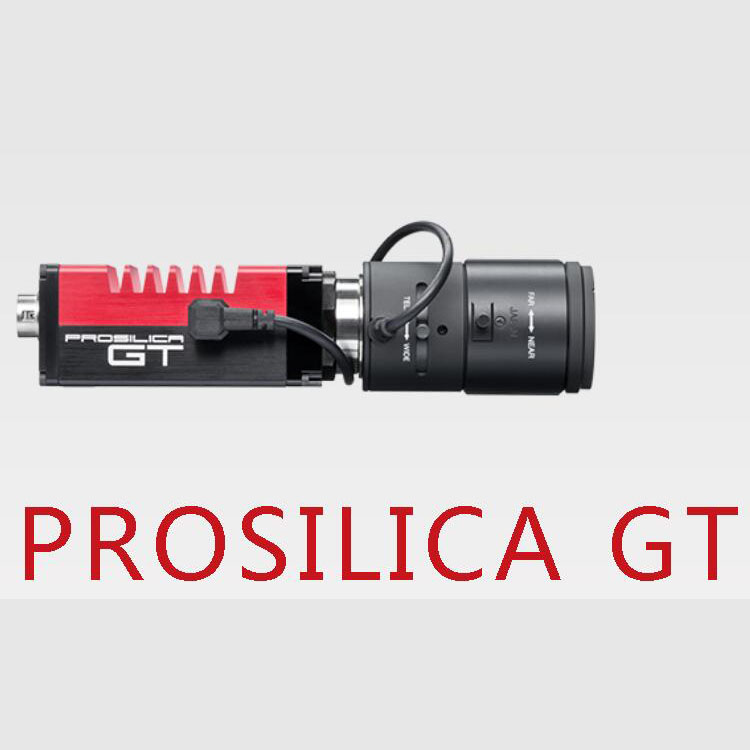

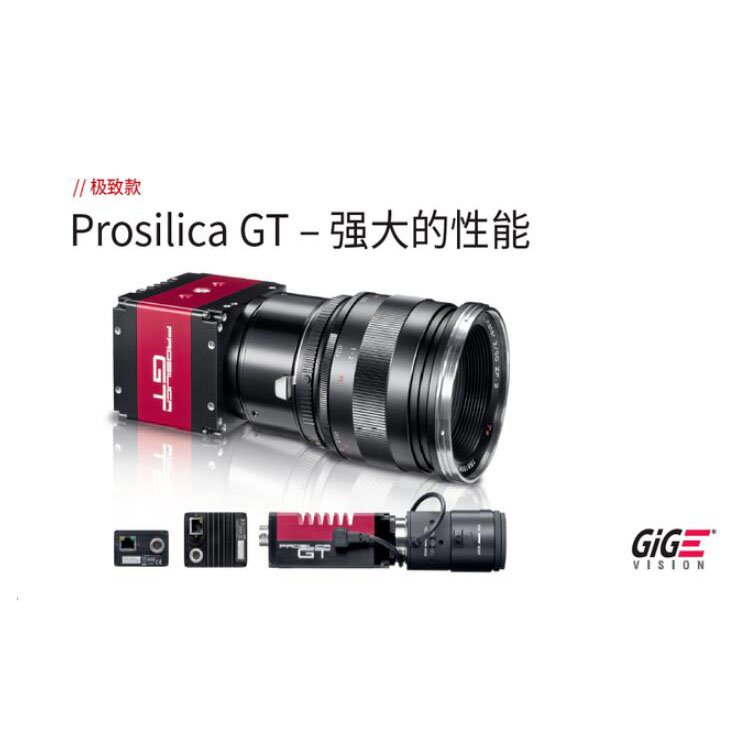

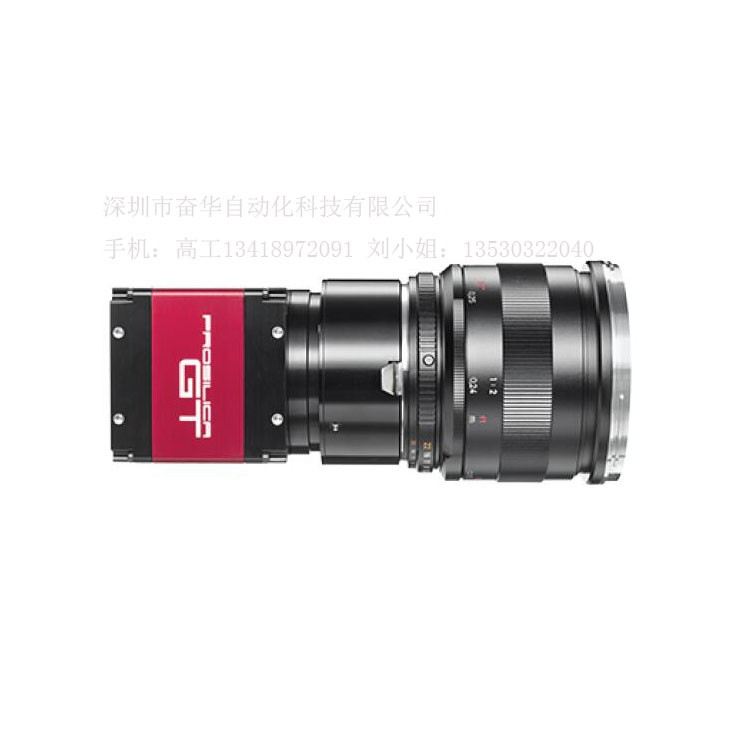

PROSILICA GT 2000NIR

· Versatile temperature range for extreme environments

· IEEE 1588 PTP

· Power over Ethernet

· P-Iris and DC-Iris lens contro

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

分辨率

2048 (H) × 1088 (V)

传感器

CMOSIS/ams CMV2000 NIR

传感器类型

CMOS

传感器尺寸

Type 2/3

像元尺寸

5.5 µm × 5.5 µm

Shutter mode

Global shutter

Lens mounts (available)

C-Mount, CS-Mount, F-Mount, Birger EF-Mount, M42-Mount

最大满帧帧率

53.7 fps

ADC

12 Bit

缓存 (RAM)

128 MByte

非易失性内存 (Flash)

1024 KByte (for selected models only)

成像性能

成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量的近红外模型的典型值。请联系销售或工程师了解更多信息。

在波长为529nm下，量子转换效率

80 %

在波长为850nm下，量子转换效率

44 %

暗噪声

13.9 eˉ

饱和电子数

9400 eˉ

动态范围

56.3 dB

绝对灵敏度阈值

14.4 eˉ

输出

Bit位数

8/12 Bit

黑白像素格式

Mono8, Mono12, Mono12Packed

通用输入输出口(GPIOs)

TTL I/Os

1 input, 2 outputs

光耦 I/Os

1 input, 2 outputs

RS232

工作条件/尺寸

工作温度

-20 °C to +65 °C ambient (without condensation)

电源要求 (DC)

7 to 25 VDC AUX or 802.3at Type 1 PoE

功耗

3.4 W at 12 VDC; 4.2 W PoE

重量

210 g

尺寸 (L × W × H in mm)

86 × 53.3 × 33 (including connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-003 Issue 4/5

2.2 Megapixel NIR enhanced camera for extreme environments

Prosilica GT2000NIR is a 2.2 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. This camera incorporates a NIR-optimized variant of the high-quality CMOSIS/ams CMV2000 CMOS sensor. At 900 nm this sensor offers double the quantum efficiency, an increase from 8% to 16% absolute. At full resolution, this camera runs 53.7 frames per second. With a smaller region of interest, higher frame rates are possible. It is a rugged camera designed to operate in extreme environments and fluctuating lighting conditions. This camera offers Precise iris lens control allowing users to fix the aperture size to optimize depth of field, exposure, and gain without the need for additional control elements. By default NIR models ship with no protection glass or filter.

Guppy	LxWxH=48.2x30x30mmincl.connectors,w/otripodandlens.Mass50g
型号	接口	分辨率	Standard	百万像素	帧率	传感类型	传感器	A/D	板载内存
F-033B/C	1394a	656x494	>VGA	0.3	58fps	1/3CCD	SonyICX424	10bits	n/a
F-036B/C	1394a	752x480	>WVGA	0.4	64fps	1/3CMOS	AptinaMT9V022	10bits	n/a
F-038B/C*	1394a	768x492	EIA/NTSC	0.4	30fps	1/2CCD	SonyICX418	12bits	n/a
F-044B/C*	1394a	752x580	CCIR/PAL	0.4	25fps	1/2CCD	SonyICX419	12bits	n/a
F-046B/C	1394a	780x582	>WVGA	0.5	49fps	1/2CCD	SonyICX415	12bits	n/a
F-080B/C	1394a	1032x778	>XGA	0.8	30fps	1/3CCD	SonyICX204	12bits	n/a
F-146B/C	1394a	1392x1040	>XGA-2	1.4	17fps	1/2CCD	SonyICX267	12bits	n/a
F-503B/C	1394a	2592x1944	>QWXGA	5	6fps	1/2.5CMOS	AptinaMT9P031	12bits	n/a
