Alvium 1800 U -1236

1800 U -1236批发

ALVIUM 1800 U-1236

· IMX304 CMOS sensor

· ALVIUM image processing

· USB3 Vision

· Various hardware options

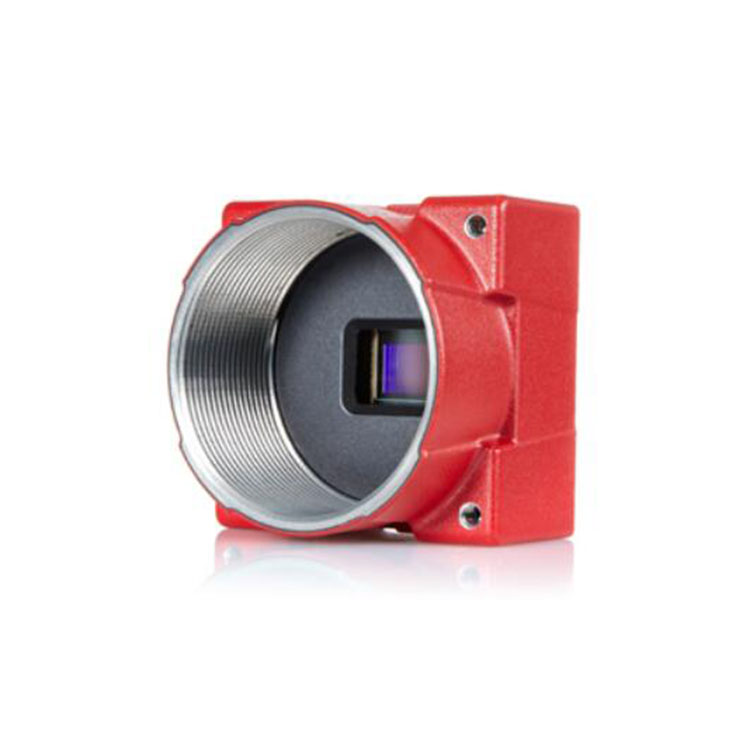

Versatile USB camera with IMX304 sensor

Alvium USB cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among system designers. The innovative ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient. With Alvium, integrating hardware and software can be done effortlessly, which ultimately reduces development time. The Sony IMX304 CMOS sensor enables imaging at 12.4 megapixel and 22 frames per second. Color models ship with an IR cut filter, monochrome models ship without a filter or protection glass.



Benefits and features

· Monochrome (1800 U-1236m) and color (1800 U-1236c) models

· ALVIUM® Technology for on-board image processing

· USB3 Vision interface for GenICam SFNC features

· Platform concept that enables the operation of different Alvium camera models with a common software

· Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications

· Precise sensor-to-lens mount alignment

· Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for front mounting

· Industrial performance for both embedded and machine vision applications

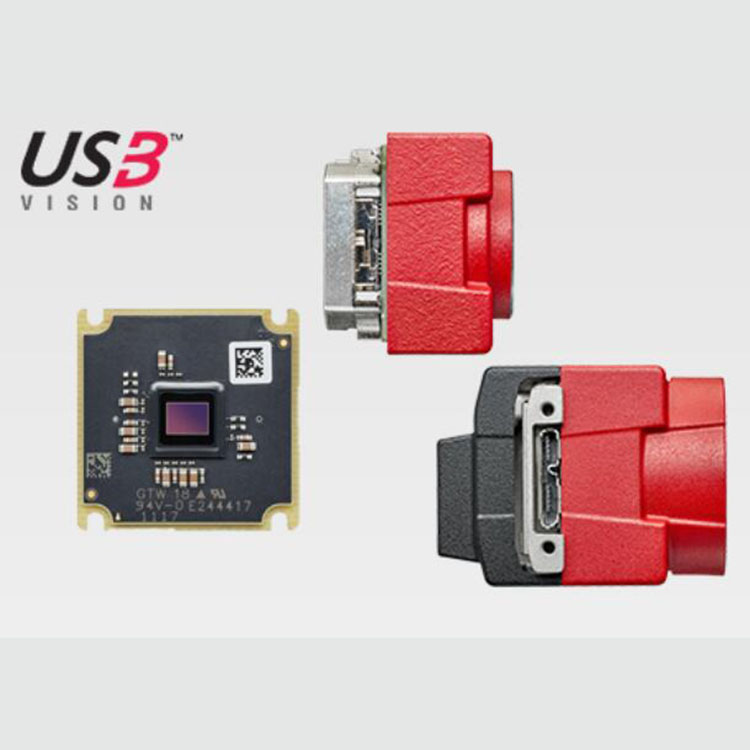

Hardware options

· Housings: Bare board, open housing, or closed housing

· Various lens mount: C-Mount

· USB connector position: Select between the back panel or the left side of the camera (seen from the sensor side).

For more information on hardware options, including product codes and technical data, such as technical drawings and mass, see the Alvium Cameras Hardware Options document.



Available accessories

· Tripod adapter

· USB 3.1 Gen 1 cable with screw connectors in various lengths

· I/O cables in various lengths

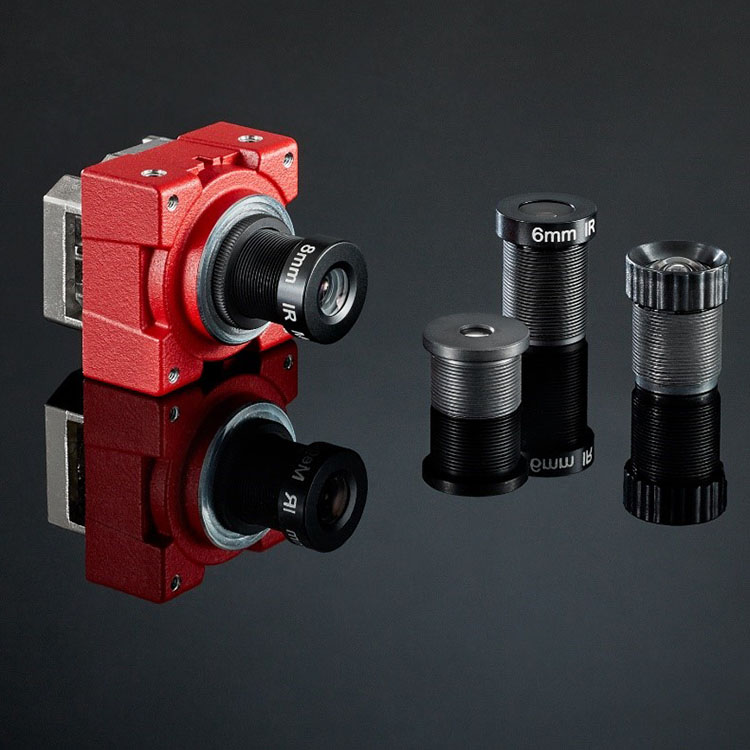

· Various lenses

Product code

14701

接口

USB3 Vision

分辨率

4112 (H) × 3008 (V)

传感器

Sony IMX304

传感器类型

CMOS

传感器尺寸

Type 1.1

像元尺寸

3.45 µm × 3.45 µm

Shutter mode

Global shutter

Lens mount

C-Mount

Optical Filter

Type Hoya C5000 IR cut filter

最大满帧帧率

22 fps at ≥300 MByte/s, Mono8

ADC

12 Bit

缓存 (RAM)

256 KB

非易失性内存 (Flash)

1024 KB

成像性能

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

在波长为529nm下,量子转换效率

64 %

暗噪声

2.1 eˉ

饱和电子数

10400 eˉ

动态范围

72 dB

绝对灵敏度阈值

2.7 eˉ

输出

Bit位数

Max. 12 Bit

黑白像素格式

Mono8, Mono10, Mono12, Mono12p

YUV彩色像素格式

YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr

RGB彩色像素格式

BayerGR8, BayerGR10, BayerGR10p, BayerRG12, BayerRG12p, BGR8, RGB8

通用输入输出口(GPIOs)

TTL I/Os

4 programmable GPIOs

工作条件/尺寸

工作温度

+5 °C to +65 °C (housing)

电源要求 (DC)

Power over USB 3.1 Gen 1 | External power 5.0 V

功耗

USB power: 2.9 W (typical) | Ext. power: 3.1 W (typical)

重量

60 g

尺寸 (L × W × H in mm)

38 × 29 × 29

符合规范

2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B)
