1800 U -2050

您的当前位置： 首 页 >> 产品中心 >> Alvium

1800 U -2050

1800 U -2050

  • 所属分类：Alvium

  • 型号：Alvium 1800 U -2050
  • 点击次数：
  • 发布日期：2020/04/06
  • 在线询价
详细介绍

Alvium

Alvium 1800 U -2050

Alvium 1800 U -2050

1800 U -2050

Alvium

1800 U -2050价格

ALVIUM 1800 U-2050

· IMX183 CMOS sensor

· ALVIUM image processing

· USB3 Vision

· Various hardware options

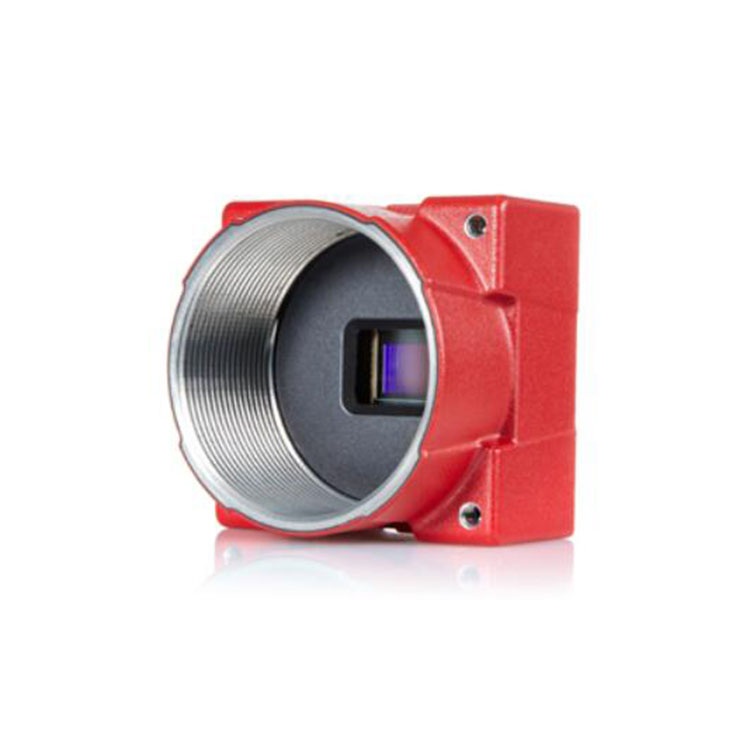

Versatile USB camera with IMX183 sensor

Alvium USB cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among system designers. The innovative ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient. With Alvium, integrating hardware and software can be done effortlessly, which ultimately reduces development time. The Sony IMX183 CMOS sensor enables imaging at 20.2 megapixel and 17 frames per second. Color models ship with an IR cut filter, monochrome models ship without a filter or protection glass.



Benefits and features

· Monochrome (1800 U-2050m) and color (1800 U-2050c) models

· ALVIUM® Technology for on-board image processing

· USB3 Vision interface for GenICam SFNC features

· Platform concept that enables the operation of different Alvium camera models with a common software

· Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications

· Precise sensor-to-lens mount alignment

· Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for front mounting

· Industrial performance for both embedded and machine vision applications



Hardware options

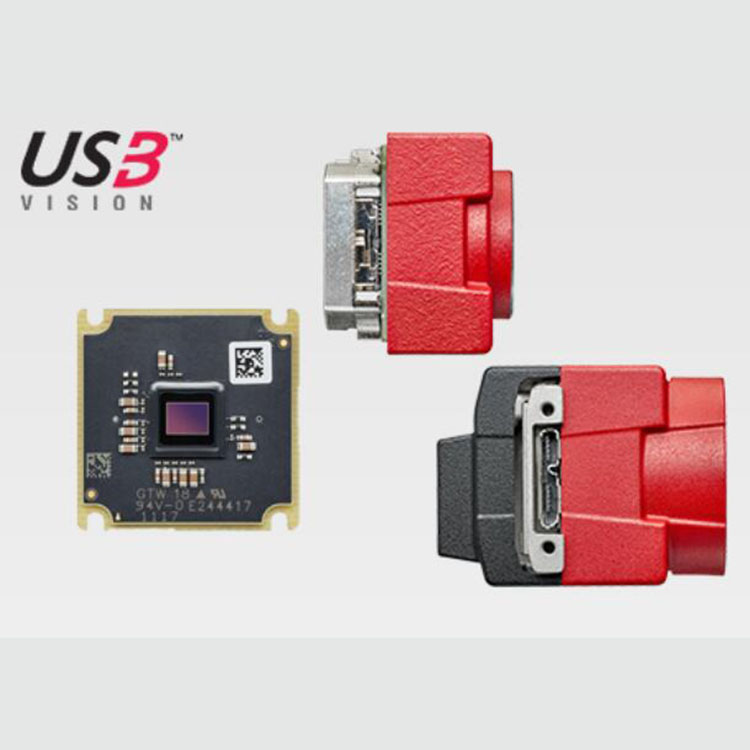

· Housings: Bare board, open housing, or closed housing

· Lens mount: C-Mount

· USB connector position: Select between the back panel or the left side of the camera (seen from the sensor side).

For more information on hardware options, including product codes and technical data, such as technical drawings and mass, see the Alvium Cameras Hardware Options document.



Available accessories

· Tripod adapter

· USB 3.1 Gen 1 cable with screw connectors in various lengths

· I/O cables in various lengths

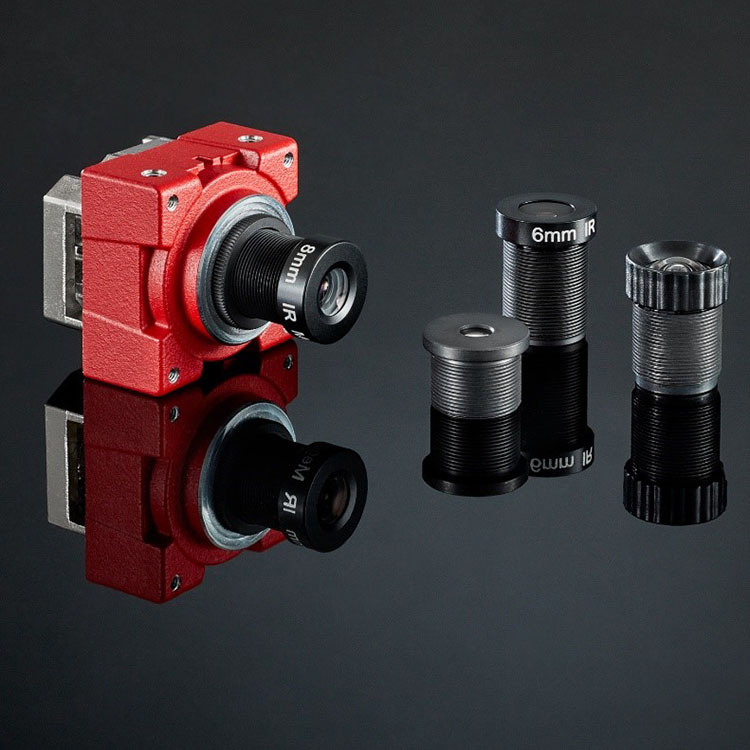

· Various lenses

Product code

14832

接口

USB3 Vision

分辨率

5496 (H) × 3672 (V)

传感器

Sony IMX183

传感器类型

CMOS

传感器尺寸

Type 1

像元尺寸

2.4 µm × 2.4 µm

Shutter mode

Global reset and Rolling shutter

Lens mount

C-Mount

Optical Filter

Type Hoya C5000 IR cut filter

最大满帧帧率

17 fps at ≥375 MByte/s, Mono8

ADC

10 Bit

缓存 (RAM)

256 KB

非易失性内存 (Flash)

1024 KB

输出

Bit位数

Max. 10 Bit

黑白像素格式

Mono8, Mono10

YUV彩色像素格式

YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr

RGB彩色像素格式

BayerGR8, BayerGR10, BayerGR10p, BGR8, RGB8

通用输入输出口(GPIOs)

TTL I/Os

4 programmable GPIOs

工作条件/尺寸

工作温度

+5 °C to +65 °C (housing)

电源要求 (DC)

Power over USB 3.1 Gen 1 | External power 5.0 V

功耗

USB power: 3.2 W (typical) | Ext. power: 3.4 W (typical)

重量

60 g

尺寸 (L × W × H in mm)

38 × 29 × 29

符合规范

2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B)
