acA1600-60gm

您的当前位置: 首 页 >> 产品中心 >> BASLER

acA1600-60gm

  • 所属分类:BASLER

  • 型号:acA1600-60gm
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍


The acA1300-22gc Basler ace GigE camera with a Sony ICX445 color CCD sensor delivers 22 frames per second at 1.3 MP resolution.

全新带包装


acA1600-60gm

General Specifications

SpecificationacA1300-22gc

Resolution
(H x V Pixels)

1294 x  964

Sensor Type

Sony ICX445AQ

Progressive scan CCD

Global shutter

Optical Size

1/3"

Effective Sensor Diagonal

6.1 mm

Pixel Size (H x V)

3.75 μm x 3.75 μm

Frame Rate

(at Default Settings)

22 fps

Product Line

ace classic

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈2.7 W when using Power over Ethernet

≈2.5 W @ 12 VDC when supplied via I/O connector

Note: When using extremely small AOIs, power consumption may increase to 2.9 W.

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

Lens Mount

CS-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

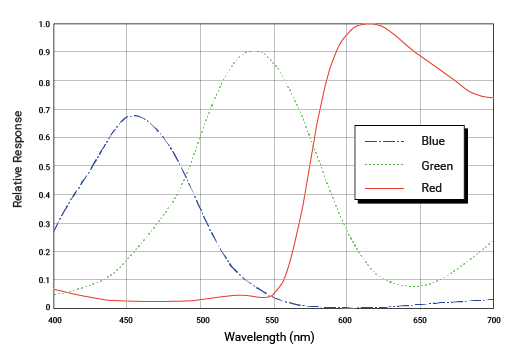

Spectral Response

acA1600-60gm

The spectral response curve excludes lens characteristics, light source characteristics, and IR cut filter characteristics.

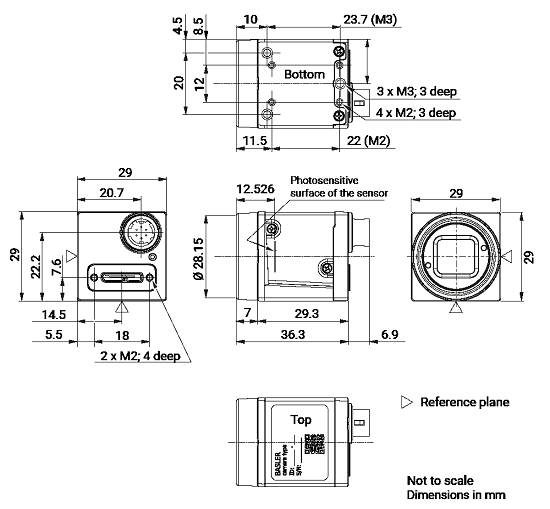

Camera Dimensions and Mounting Points

acA1600-60gm

Maximum Allowed Lens Intrusion

→ See Maximum Allowed Lens Intrusion.

Stress Test Results

→ See Stress Test Results.

Requirements

acA1600-60gm

acA1600-60gm
