acA1920-25gm

您的当前位置: 首 页 >> 产品中心 >> BASLER

acA1920-25gm

  • 所属分类:BASLER

  • 型号:acA1920-25gm
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍


acA1920-25gm

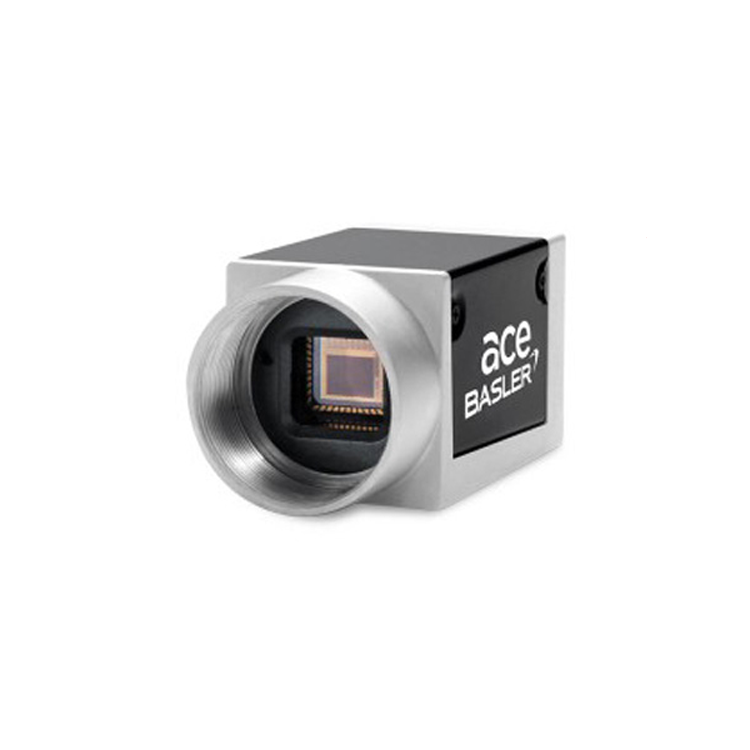

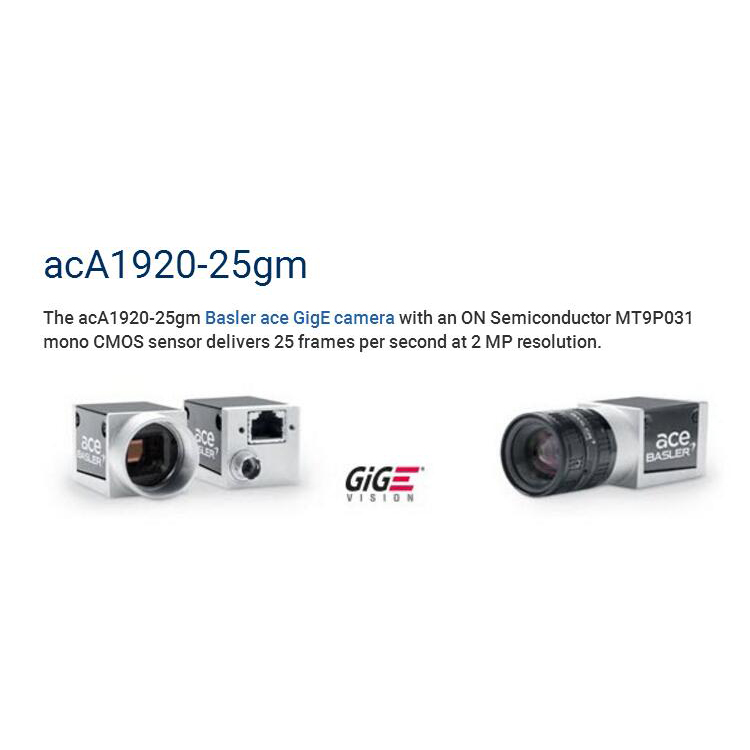

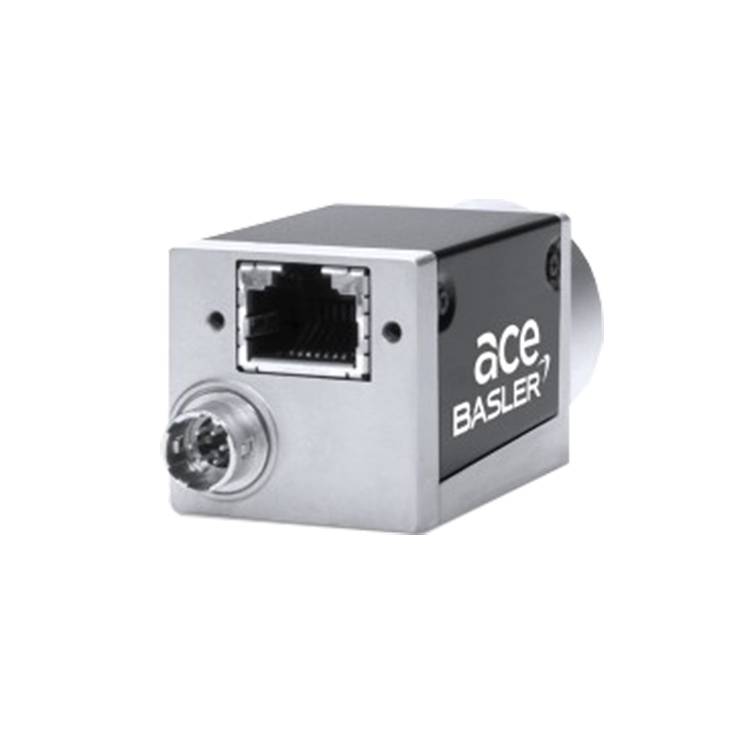

The acA1920-25gm Basler ace GigE camera with an ON Semiconductor MT9P031 mono CMOS sensor delivers 25 frames per second at 2 MP resolution.


acA1920-25gm

Specifications

General Specifications

SpecificationacA1920-25gm

Resolution
(H x V Pixels)

1920 x 1080

Sensor Type

ON Semiconductor MT9P031

Progressive scan CMOS

Rolling shutter

Optical Size

1/3.7"

Effective Sensor Diagonal

4.85 mm

Pixel Size (H x V)

2.2 μm x 2.2 μm

Frame Rate
(at Default Settings)

25 fps

Product Line

ace classic

Mono / Color

Mono

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈2.7 W when using Power over Ethernet

≈2.2 W @ 12 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

Lens Mount

C-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

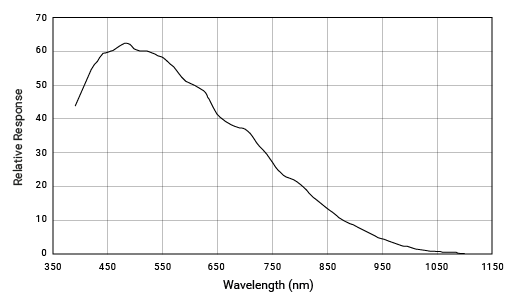

Spectral Response

acA1920-25gm

The spectral response curve excludes lens characteristics and light source characteristics.

Mechanical Specifications

Camera Dimensions and Mounting Points


acA1920-25gm

acA1920-25gm
