acA1920-50gc

您的当前位置: 首 页 >> 产品中心 >> BASLER

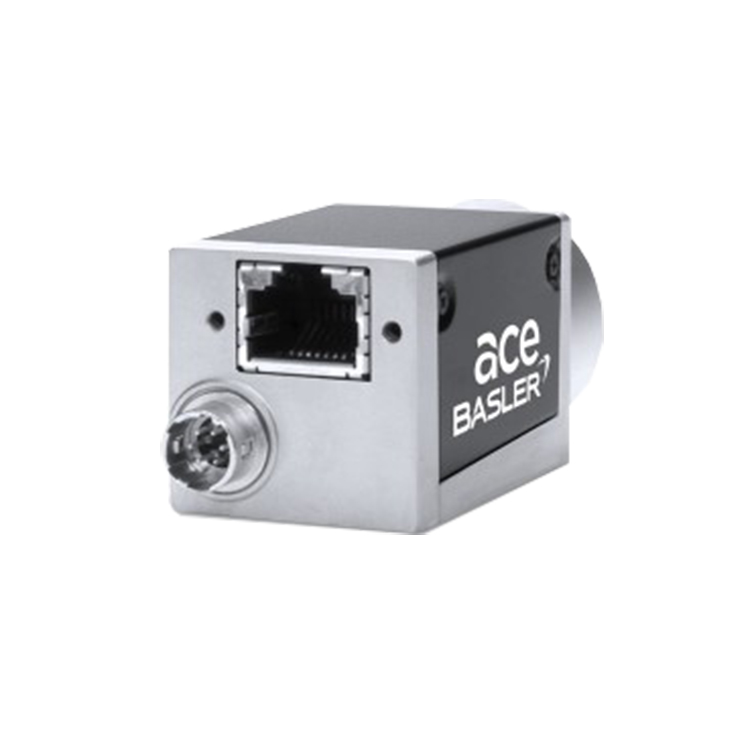

acA1920-50gc

  • 所属分类:BASLER

  • 型号:acA1920-50gc
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍

德国全新原装巴斯勒工业相机彩色

acA1920-50gc

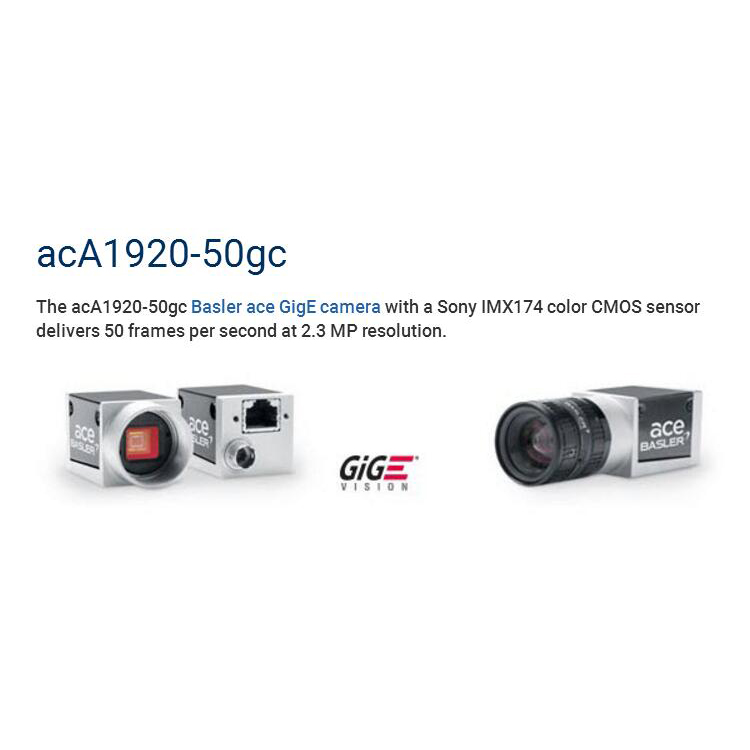

The acA1920-50gc Basler ace GigE camera with a Sony IMX174 color CMOS sensor delivers 50 frames per second at 2.3 MP resolution.



acA1920-50gc

acA1920-50gc

acA1920-50gc

acA1920-50gc

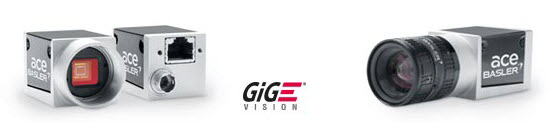

The acA1920-50gc Basler ace GigE camera with a Sony IMX174 color CMOS sensor delivers 50 frames per second at 2.3 MP resolution.

acA1920-50gc


General SpecificationsSpecifications

SpecificationacA1920-50gc

Resolution
(H x V Pixels)

1936 x 1216 (full resolution)

1920 x 1200 (default resolution)

You can change the resolution by changing the Image ROI.

Sensor Type

Sony IMX174LQJ-C

Progressive scan CMOS

Global shutter

Optical Size

1/1.2"

Effective Sensor Diagonal

13.4 mm

Pixel Size (H x V)

5.86 μm x 5.86 μm

Frame Rate
(at Default Settings)

50 fps

Higher frame rates are possible if you change the Packet Size to 4000 and the Bandwidth Reserve to 5.

Product Line

ace U

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12–24 VDC supplied via I/O connector

≈3.4 W (typical), ≈3.6 W (max.) when using Power over Ethernet

≈3.0 W (typical), ≈3.2 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

1 general purpose I/O (GPIO) line

Lens Mount

C-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

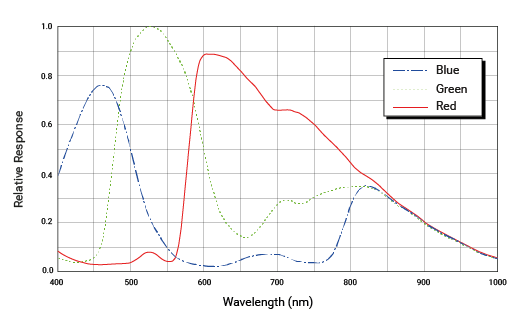

Spectral Response

acA1920-50gc

The spectral response curve excludes lens characteristics, light source characteristics, and IR cut filter characteristics.

IR Cut Filter

Color cameras are equipped with an IR cut filter. The filter is mounted in a filter holder inside the lens mount.

The IR cut filter has the following spectral characteristics:

Wavelength [nm]Transmittance
450–610Tmin > 90 %
450–620Tavg > 93 %
645 ± 10T = 50 %
700–1070Tmax < 4 %
690–1070Tavg < 1 %

The filter holder can't be removed.

Mechanical Specifications

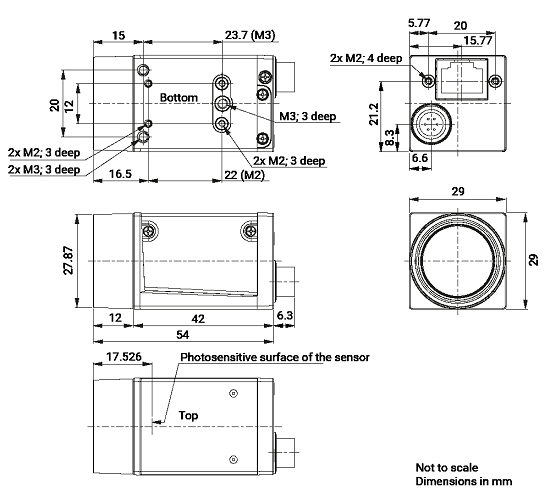

Camera Dimensions and Mounting Points

acA1920-50gc
