acA2000-50gc

您的当前位置: 首 页 >> 产品中心 >> BASLER

acA2000-50gc

  • 所属分类:BASLER

  • 型号:acA2000-50gc
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍

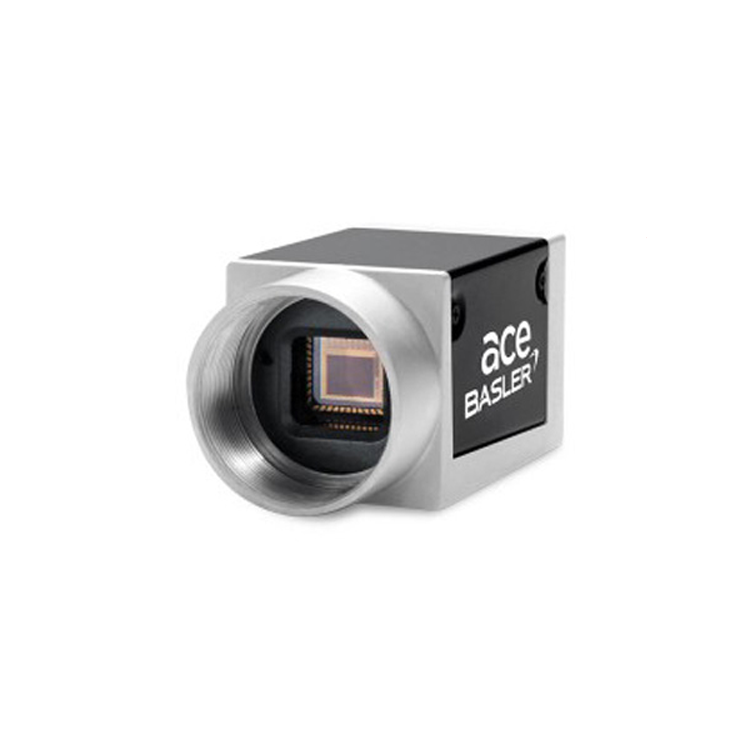

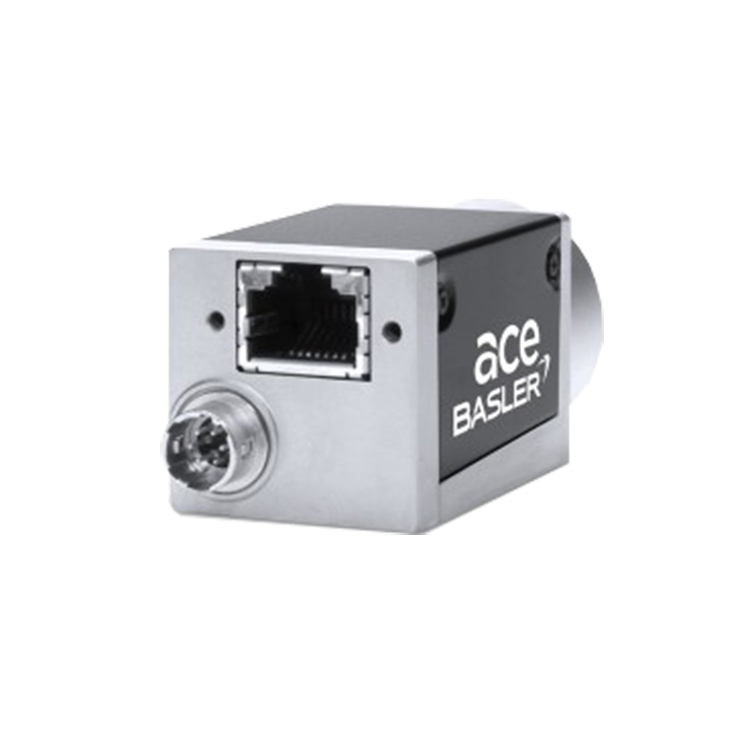

德国全新原装巴斯勒彩色工业相机

acA2000-50gc

The acA2000-50gc Basler ace GigE camera with a CMOSIS CMV2000 color CMOS sensor delivers 50 frames per second at 2 MP resolution.

acA2000-50gc

General SpecificationsSpecifications

SpecificationacA2000-50gc

Resolution
(H x V Pixels)

2046 x 1086

Sensor Type

CMOSIS CMV2000-3E5C

Progressive scan CMOS

Global shutter

Optical Size

2/3"

Effective Sensor Diagonal

12.75 mm

Pixel Size (H x V)

5.5 μm x 5.5 μm

Frame Rate
(at Default Settings)

50 fps

Product Line

ace classic

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈3.0 W when using Power over Ethernet

≈2.5 W @ 12 VDC when supplied via I/O connector

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

Lens Mount

C-mount, CS-mount

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website.

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model

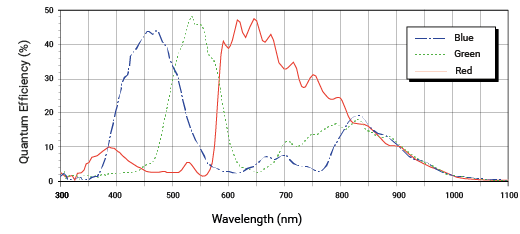

Spectral Response

acA2000-50gc

The spectral response curves exclude lens characteristics, light source characteristics, and IR cut filter characteristics.

IR Cut Filter

Color cameras are equipped with an IR cut filter. The filter is mounted in a filter holder inside the lens mount.

The IR cut filter has the following spectral characteristics:

Wavelength [nm]Transmittance
450–610Tmin > 90 %
450–620Tavg > 93 %
645 ± 10T = 50 %
700–1070Tmax < 4 %
690–1070Tavg < 1 %

The filter holder can't be removed.

Mechanical Specifications

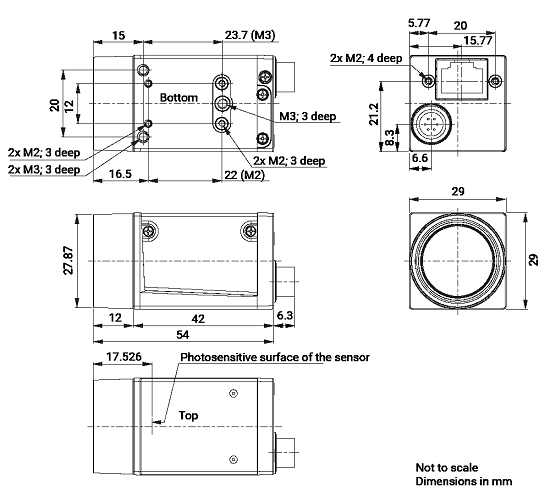

Camera Dimensions and Mounting Points

acA2000-50gc

acA2000-50gc

acA2000-50gc
